Article No. 8050
FASERFIX KS 100 up to load class F 900
Type 010, galvanised, 0,5 m
Questions?

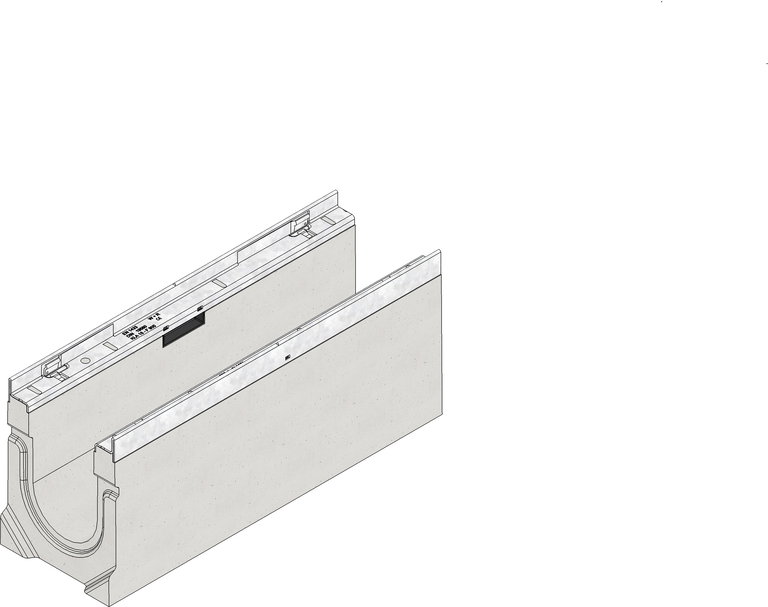

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8050
Length
500 mm
Width
160 mm
Height
214 mm
Weight
21.50 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
143 cm²
Fall
-
Sales text
Locking handle, SIDE-LOCK
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Sales text
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel body type 010 with edge frames made of galvanised steel, 0,5
Sales text
FASERFIX KS 100 type 010 - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE-conform, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 500x160x214 mm, item no. 8050
Sales text
56
