Article No. 1108
FASERFIX KS 100 up to load class F 900
Type 100, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

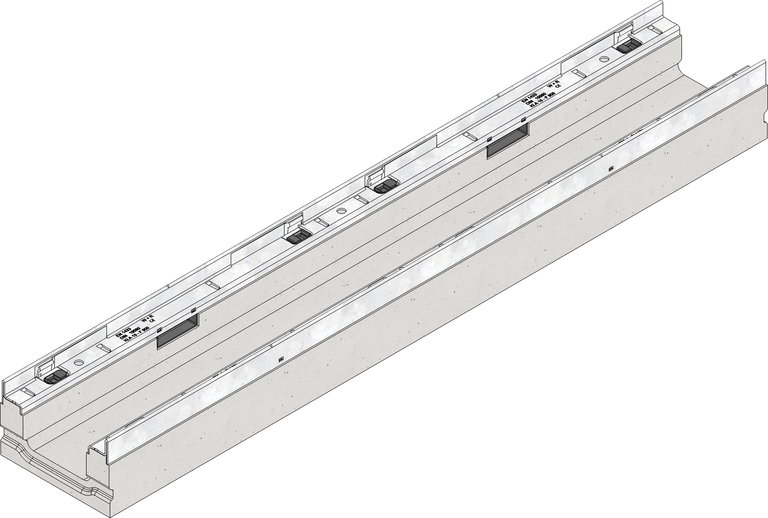

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
1108
Length
1000 mm
Width
160 mm
Height
100 mm
Weight
20.20 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
54 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Flat channel body type 100 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 100 flat type 100 - channel made of fibre reinforced concrete, suitable for use in parking areas according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eigthfold locking, without crossing bars in the channel line, with safety joint, L/W/H 1000x160x100 mm, item no. 1108
Packaging unit
56
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Concrete class A 15 - C 250, Flat channel
Pavement class A 15 - C 250, Flat channel
water-bound road surfaces class A 15 - C 250,
Asphalt class E 600 - F 900,
Concrete class A 15 - F 900,
Cemented floor class A 15 - C 250, Flat channel
Asphalt class A 15 - D 400, with curb
Concrete class A 15 - D 400, with curb
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Pavement / large-size slab class D 400,
Pavement class D 400,
Concrete class E 600,
Pavement class A 15 - C 250, as double strand
Asphalt class A 15 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Installation instructions
