Article No. 1137
FASERFIX KS 100 up to load class F 900
Type 80L, with hole DN/OD 110,galvanised, 1,0 m*
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
1137
Length
1000 mm
Width
160 mm
Height
80 mm
Weight
15.33 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
34 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 Channel Type 80 with hole DN/OD 110
Product description

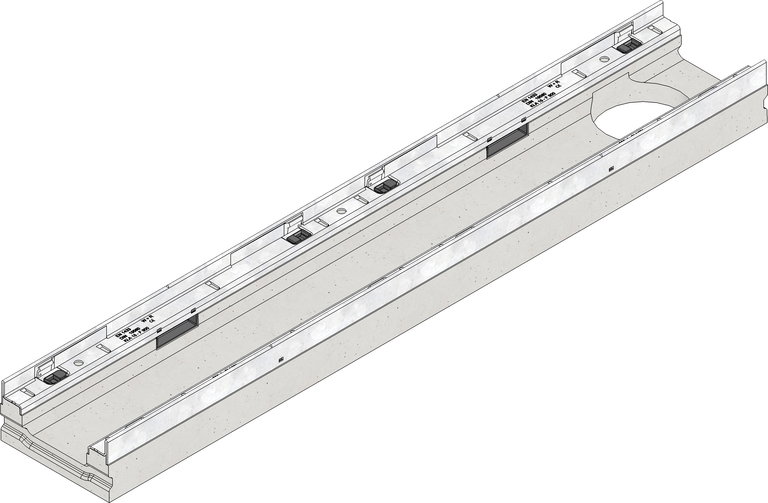

FASERFIX KS 100 type 80 with hole - Channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, type 80 with hole DN/OD 110, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, L/W/H 1000x160x80 mm, Item No. 1137
Packaging unit
56
