Article No. 8007
FASERFIX KS 100 with built-in fall 0.6 %
Type 7, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

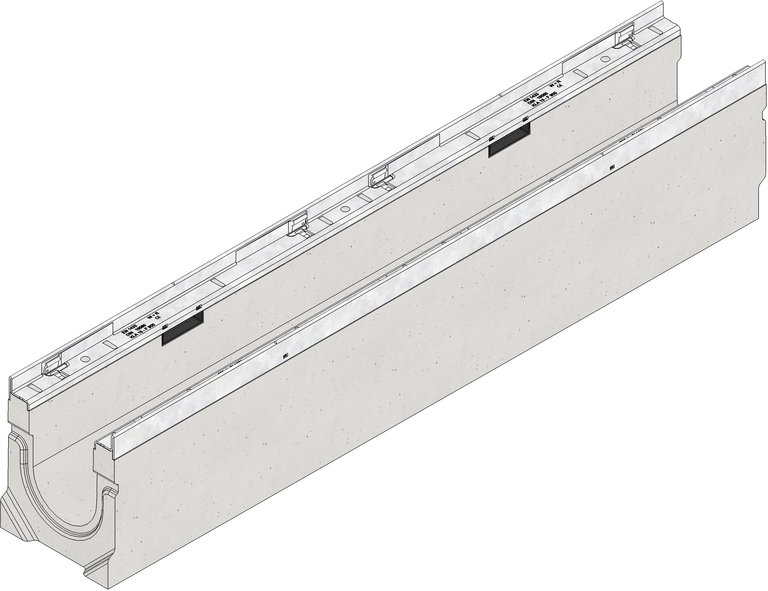

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8007
Length
1000 mm
Width
160 mm
Height
196 - 202 mm
Weight
37.90 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
125 cm²
Fall
0.6 %
Sales text
Locking handle, SIDE-LOCK
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Sales text
EN 1433, DIN 19580
Sales text
FASERFIX KS 100 channel type 7
Sales text
FASERFIX KS 100 Type 1-19 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900, according to DIN19580 / EN 1433, CE-conform, with built-in fall, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, L/W/H 1000x160x160-220 mm, Item No. 8001-8010
Sales text
21
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
