Article No. 11075
FASERFIX KS 150, class C 250
Mesh grating MS 30/10 mm, galvanised, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

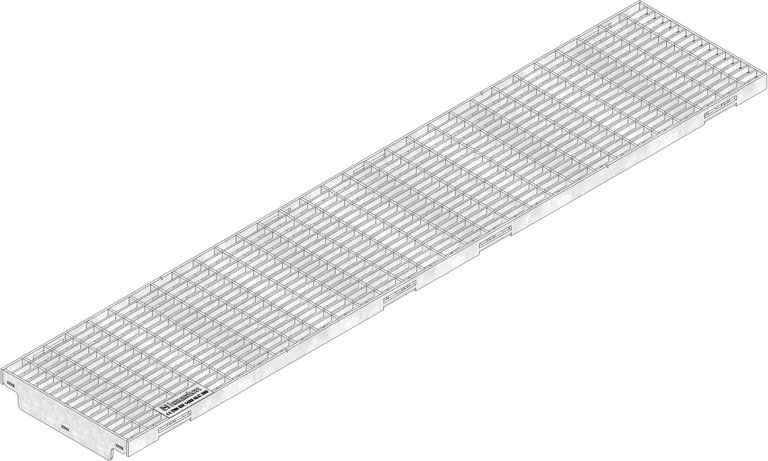

Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11075
Length
1000 mm
Width
199 mm
Height
41 mm
Einlegetiefe
20 mm
Weight
7.20 kg
Material
hot-dip galvanised steel
Intake cross-section
1466.0 cm²/m
Nominal size
150
Inlet opening
10
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. C 250, FASERFIX KS 150, 1 m
Product description
FASERFIX KS 150 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 11075
Packaging unit
102
Declaration of Performance
