Article No. 11575
FASERFIX KS 150, class C 250
Mesh grating MW 30/10 mm, stainless steel, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

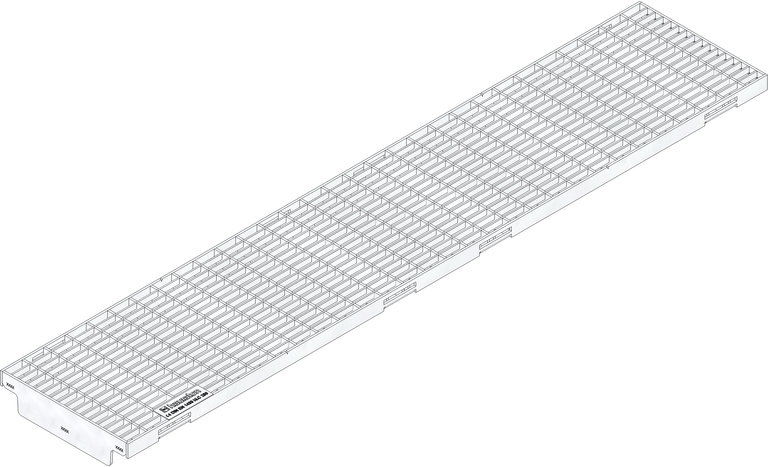

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11575
Length
1000 mm
Width
199 mm
Height
46 mm
Weight
8.00 kg
Material
Stainless steel 1.4301
Intake cross-section
1466.0 cm²/m
Nominal size
150
Inlet opening
10
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MW 30/10, stainless steel, cl.C 250, KS 150, 1 m
Product description
KS 150 - Mesh grating MW 30/10, stainless steel CNS 1.4301 (AISI 304), loading capacity from A 15 up to C 250, according EN 1433, CE-compliant, mesh width 30/10, length 1000 mm, Item No. 11575
Packaging unit
102
Declaration of Performance
