Article No. 11463
FASERFIX KS 150, class D 400
Ductile iron grating SW 132/18 mm, black, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

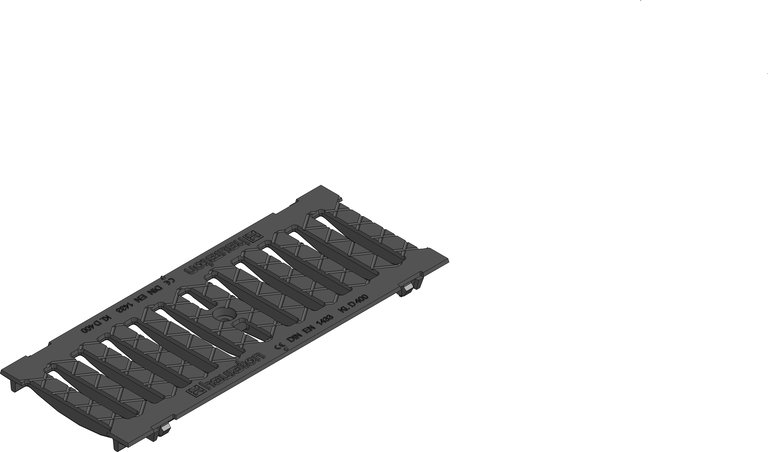

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11463
Length
500 mm
Width
199 mm
Height
35 mm
Einlegetiefe
20 mm
Weight
5.30 kg
Material
Ductile iron GJS 500-7
Intake cross-section
553.0 cm²/m
Nominal size
150
Inlet opening
18
Sales text
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
Ductile iron grating, SW 18 mm, cl. D 400, KS 150, 0,5 m
Sales text
FASERFIX KS 150 - ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 132/18 mm, black, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, CE-conform, installation length 500 mm, item no. 11463
Sales text
154
Declaration of Performance
