Article No. 11035

FASERFIX KS 150 up to class F 900

Type 01L, with hole DN/OD 160, galvanised, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

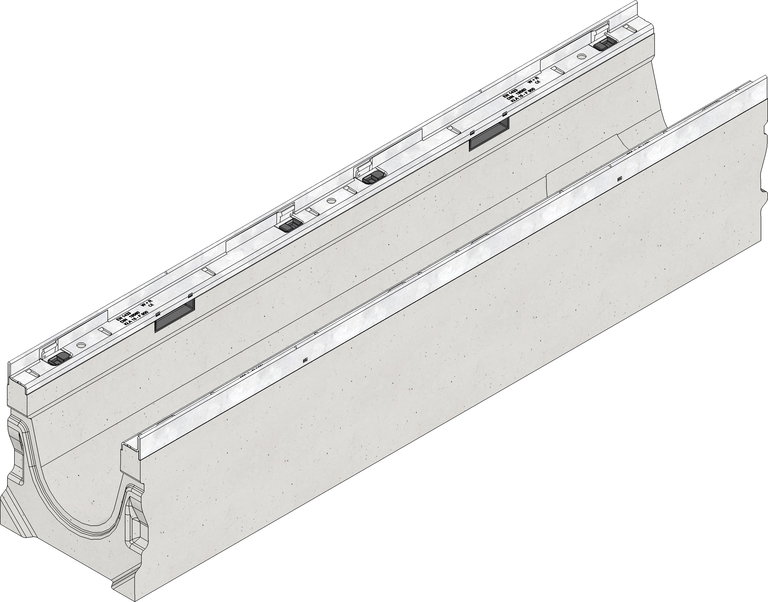

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
11035
Length
1000 mm
Width
210 mm
Height
220 mm
Weight
54.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
185 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 150 Channel body type 01L with outlet DN/OD 160, with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 150 type 01 L - channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with hole DN/OD 160 in channel base, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without traverse webs in the channel run, with sealing groove, L/W/H 1000x210x220 mm, item no. 11035
Packaging unit
15

Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15 - B 125,

Concrete class A 15 - C 250, Flat channel

Concrete class A 15 - C 250, Flat channel

Pavement class A 15 - C 250, Flat channel

water-bound road surfaces class A 15 - C 250,

Asphalt class E 600 - F 900,

Concrete class A 15 - F 900,

Cemented floor class A 15 - C 250, Flat channel

Asphalt class A 15 - D 400, with curb

Concrete class A 15 - D 400, with curb

Pavement class A 15 - C 250,

Asphalt class A 15 - D 400,

Pavement / large-size slab class D 400,

Pavement class D 400,

Concrete class E 600,

Pavement class A 15 - C 250, as double strand

Asphalt class A 15 - D 400, as double strand

Pavement class D 400, as double strand

Asphalt class E 600, as double strand

Concrete class C 250 - D 400, as double strand

Installation instructions
