Article No. 12064
FASERFIX KS 200, class C 250
Ductile iron grating 2x SW 85/20 mm, black, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

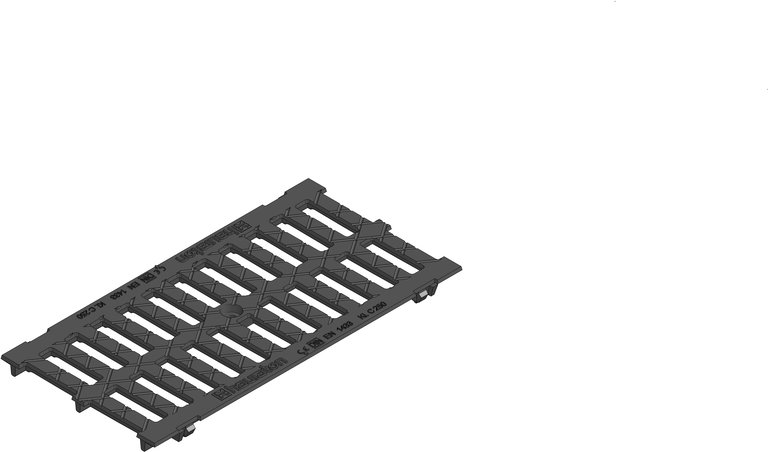

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
12064
Length
500 mm
Width
249 mm
Height
27 mm
Einlegetiefe
20 mm
Weight
5.64 kg
Material
Ductile iron GJS 500-7
Intake cross-section
824.0 cm²/m
Nominal size
200
Inlet opening
20
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 85/20 mm, black, cl. C 250, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Ductile iron grating 2x SW 85/20 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12064
Packaging unit
108
Declaration of Performance
