Article No. 12275
FASERFIX KS 200, class D 400
Ductile iron design grating METROPOLIS, black, locked, KTL-coated, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

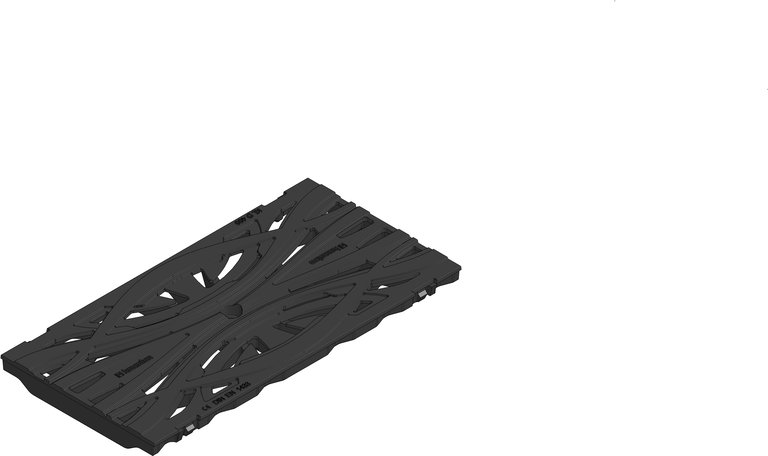

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
12275
Length
500 mm
Width
249 mm
Height
41 mm
Weight
10.70 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
279.0 cm²/m
Nominal size
200
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating Metropolis, KTL-coated, class D 400, KS 200, 0,5 m
Product description
FASERFIX KS 200 - ductile iron grating made of spheroidal ductile iron GJS 500-7, type Metropolis, KTL-coated, with horizontal thrust protection, loading capacity from A 15 - D 400 according to EN 1433, CE-conform, fourfold locking, length 500 mm, item no. 12275
Packaging unit
84
Declaration of Performance
