Article No. 12266

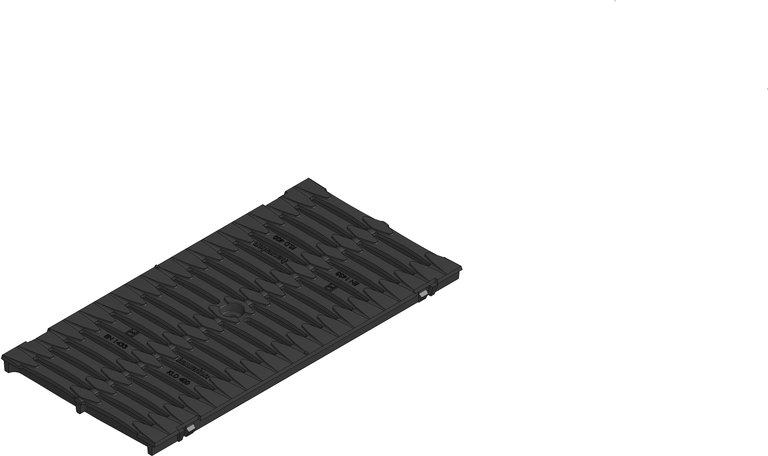

FASERFIX KS 200, class D 400
G-TEC Ductile iron grating SW 2 x 85/9 mm, KTL-coated, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
12266
Length
500 mm
Width
249 mm
Height
26 mm
Einlegetiefe
20 mm
Weight
8.25 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
596.0 cm²/m
Nominal size
200
Inlet opening
9
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
Ductile iron grating 2x SW 85/9 mm, KTL-coated, cl. D 400, FASERFIX KS 200 G-TEC, 0.5 m
Product description
FASERFIX KS 200 - G-TEC ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 2 x 85/9 mm, KTL-coated, with horizontal thrust resistance, loading capacity from A 15 - D 400 according to EN 1433, CE-conform fourfold locking, length 500 mm, item no. 12266
Packaging unit
108
