Article No. 12061
FASERFIX KS 200, class F 900
Ductile iron grating 2x SW 85/20 mm, black, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

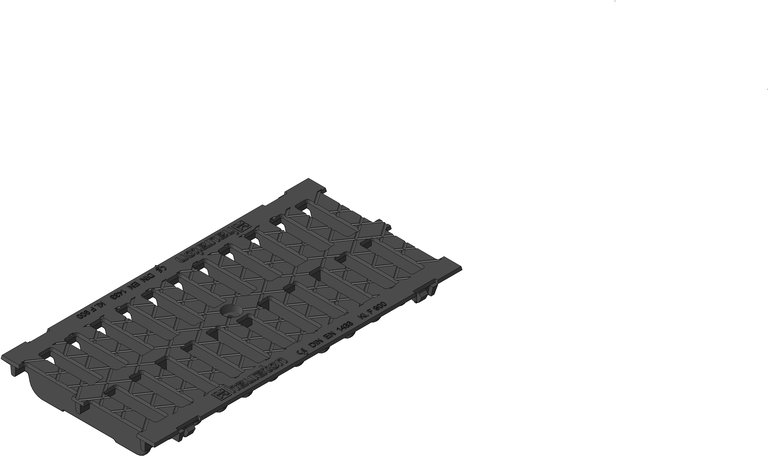

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
12061
Length
500 mm
Width
249 mm
Height
52 mm
Einlegetiefe
20 mm
Weight
10.35 kg
Material
Ductile iron GJS 500-7
Intake cross-section
825.0 cm²/m
Nominal size
200
Inlet opening
20
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 85/20 mm, black, cl. F 900, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Ductile iron grating 2x SW 85/20 mm, made of spheroidal ductile iron GJS 500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 12061
Packaging unit
90
Declaration of Performance
