Article No. 12043

FASERFIX KS 200 up to load class F 900

Type 015, galvanised, 1,0 m

Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

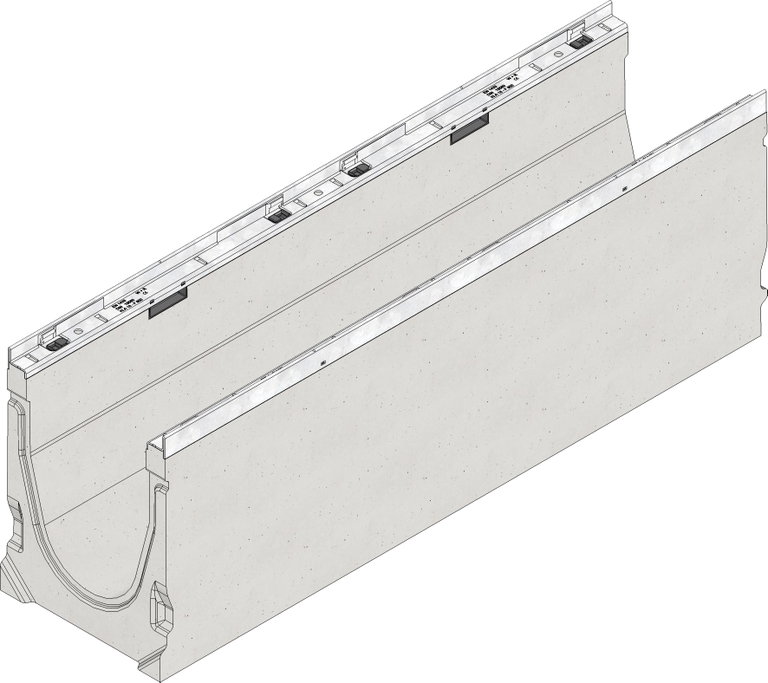

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
12043
Length
1000 mm
Width
260 mm
Height
345 mm
Weight
89.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
200
Internal channel cross-section
462 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX KS 200 Channel body type 015 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX KS 200 type 015 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, additional locking mechanism applicable, 8-fold locking, with sealing groove, LxWxH 1000x260x345 mm, item no. 12043
Packaging unit
8

Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15 - B 125,

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Concrete class A 15 - C 250, Flat channel

Installation example

Pavement class A 15 - C 250, Flat channel

Installation example

water-bound road surfaces class A 15 - C 250,

Installation example

Asphalt class E 600 - F 900,

Installation example

Concrete class A 15 - F 900,

Installation example

Cemented floor class A 15 - C 250, Flat channel

Installation example

Asphalt class A 15 - D 400, with curb

Installation example

Concrete class A 15 - D 400, with curb

Installation example

Pavement class A 15 - C 250,

Installation example

Asphalt class A 15 - D 400,

Installation example

Pavement / large-size slab class D 400,

Installation example

Pavement class D 400,

Installation example

Concrete class E 600,

Installation example

Pavement class A 15 - C 250, as double strand

Installation example

Asphalt class A 15 - D 400, as double strand

Installation example

Pavement class D 400, as double strand

Installation example

Asphalt class E 600, as double strand

Installation example

Concrete class C 250 - D 400, as double strand

Installation example

Installation instructions
Installation instructions
