Article No. 14463
FASERFIX KS 300, class D 400
Ductile iron grating SW 2 x 140/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

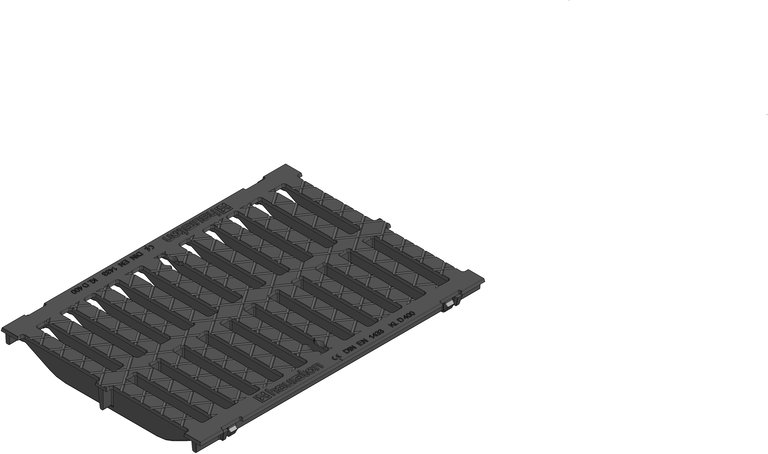

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
14463
Length
500 mm
Width
349 mm
Height
52 mm
Einlegetiefe
20 mm
Weight
12.92 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1317.0 cm²/m
Nominal size
300
Inlet opening
18
Sales text
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 140/18 mm, black, cl. D 400, FASERFIX KS 300, 0.5 m
Sales text
FASERFIX KS 300 - ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x140/18mm, black, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, CE-conform, installation length 500 mm, item no. 14463
Sales text
72
Declaration of Performance
