Article No. 14068
FASERFIX KS 300, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

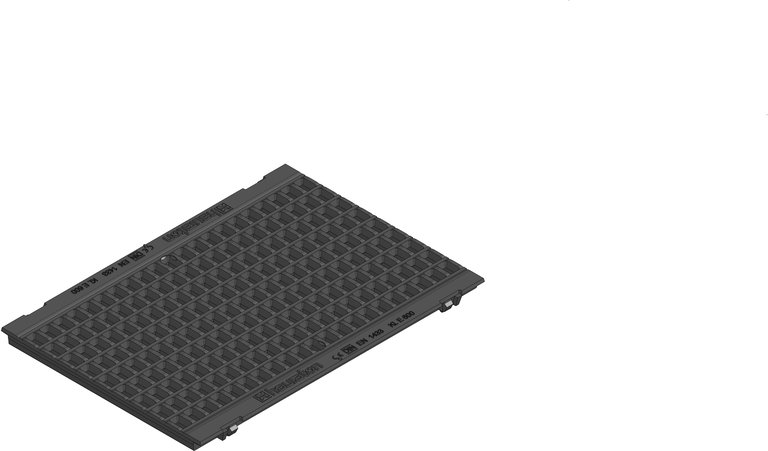

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
14068
Length
500 mm
Width
349 mm
Height
47 mm
Einlegetiefe
20 mm
Weight
18.12 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1188.0 cm²/m
Nominal size
300
Inlet opening
25
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX KS 300, 0.5 m
Product description
KS 300 - Ductile iron mesh grating, loading capacity from A 15 up to E 600, according to DIN 19580 / EN 1433, CE-conform, length: 500 mm, Item No. 14068
Packaging unit
50
Declaration of Performance
