Article No. 14268
FASERFIX KS 300, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, locked, KTL-coated, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

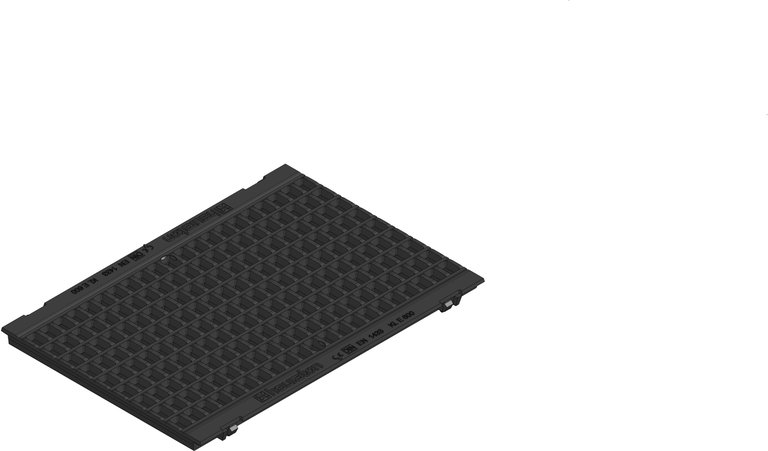

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
14268
Length
500 mm
Width
349 mm
Height
47 mm
Weight
18.15 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
1188.0 cm²/m
Nominal size
300
Inlet opening
25
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
GUGI Ductile iron mesh grating, cl. E 600, MW 15/25, KTL-coated, KS 300, 0,5 m
Product description
KS 300 - G-TEC Ductile iron grating made of ductile graphite iron EN-GJS, KTL-coated To be secured against horizontal thrusts, load class / loading capacity A 15 - E 400 according to DIN 19580/EN 1433, Up to load class E 400 not for use across the carriageway of highways or motorways in moving traffic. CE-conform, 4-times adjustments, installation length 500 mm, Art.-Nr. 14268
Packaging unit
50
Declaration of Performance
