Article No. 26063
FASERFIX SUPER 100, class D 400
Ductile iron grating, SW 94/16 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

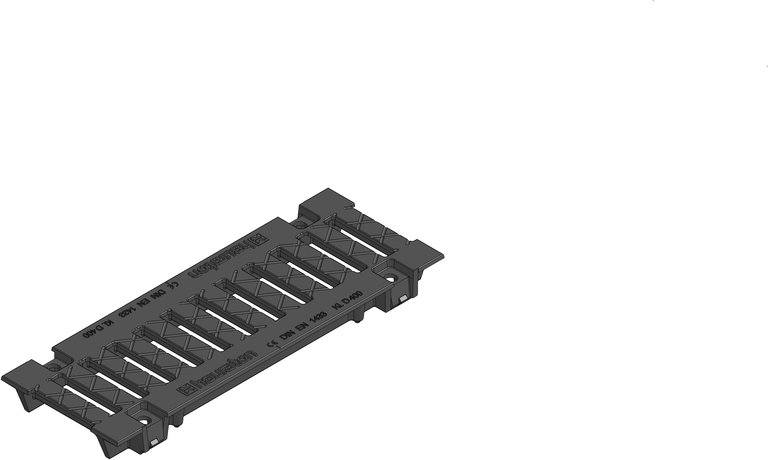

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
26063
Length
500 mm
Width
179 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
5.97 kg
Material
Ductile iron GJS 500-7
Intake cross-section
360.0 cm²/m
Nominal size
100
Inlet opening
16
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 94/16 mm, black, cl. D 400, FASERFIX SUPER 100, 0.5 m
Product description
FASERFIX SUPER 100 - Ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 94/16 mm, black, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE-compliant, 4-fold locking, installation length 500 mm, item no. 26063
Packaging unit
128
Declaration of Performance
