Article No. 26442
FASERFIX SUPER 100 with ductile iron angle housings, up to load class F 900
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

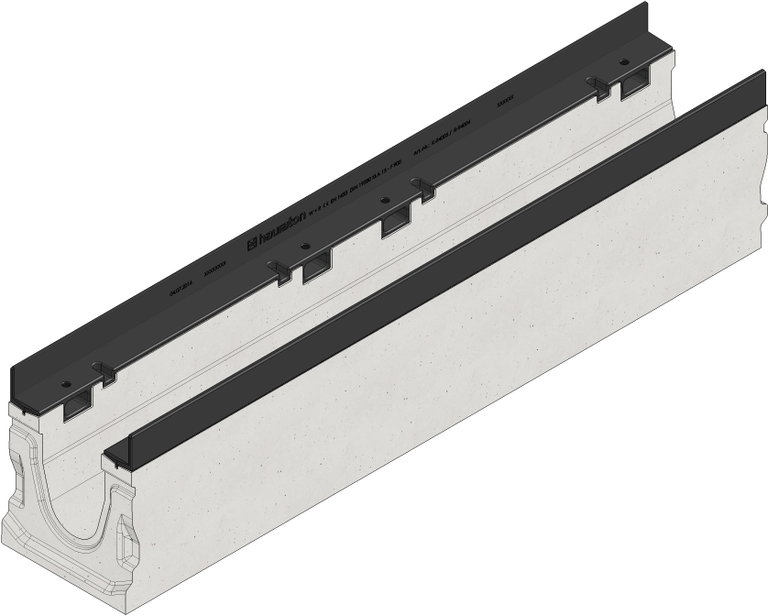

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
26442
Length
1000 mm
Width
190 mm
Height
235 mm
Weight
62.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Height of angle housing
40 mm
Nominal size
100
Internal channel cross-section
125 cm²
Fall
-
Sales text
Bolting
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
Ductile iron GJS 500-7 with KTL-coating
Sales text
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 100 Channel body type 010 with edge frames made of KTL-coated ductile iron, 1 m
Sales text
FASERFIX SUPER 100 type 010 -channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with KTL-coated ductile iron angle housing, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, eightfold locking per runing meter, L/W/H 1000x190x235 mm, item no. 26442
Sales text
18
Declaration of Performance
Tender Texts
Installation example
Pavement class D 400
Pavement class A 15 - C 250
Asphalt class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement / large-size slab class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Pavement class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Concrete class A 15 - C 250
Installation instructions
