Article No. 22463
FASERFIX SUPER 150, class D 400
Ductile iron grating, SW 150/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

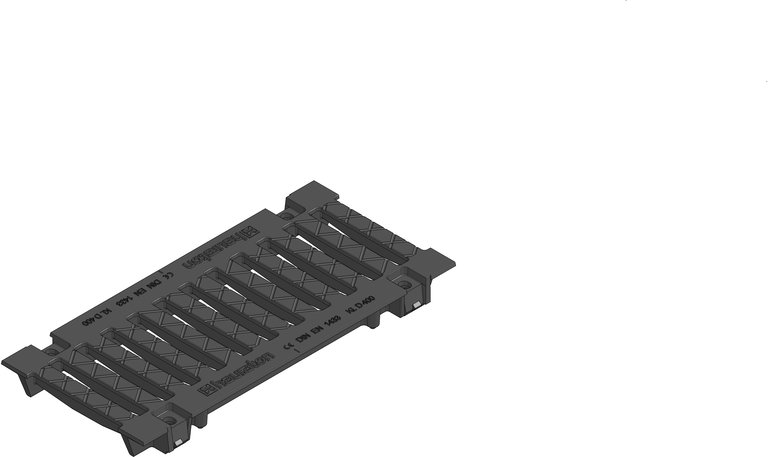

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
22463
Length
500 mm
Width
229 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
7.44 kg
Material
Ductile iron GJS 500-7
Intake cross-section
624.0 cm²/m
Nominal size
150
Inlet opening
18
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 150/18 mm, black, cl. D 400, FASERFIX SUPER 150, 0.5 m
Product description
FASERFIX SUPER 150 - Ductile iron grating SW 150/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 22463
Packaging unit
98
Declaration of Performance
