Article No. 22068
FASERFIX SUPER 150, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

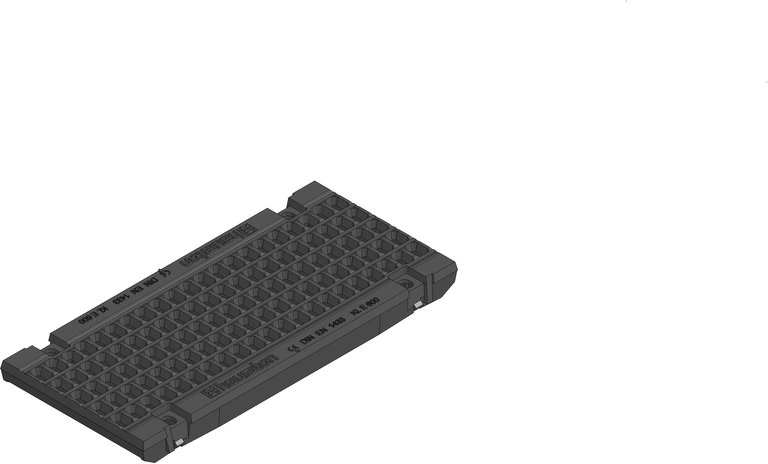

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
22068
Length
500 mm
Width
229 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
12.24 kg
Material
Ductile iron GJS 500-7
Intake cross-section
628.0 cm²/m
Nominal size
150
Inlet opening
25
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, SUPER 150, 0.5 m
Product description
FASERFIX SUPER 150 - GUGI-ductile iron mesh grating MS 15x25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 22068
Packaging unit
70
Declaration of Performance
