Article No. 22049
FASERFIX SUPER 150 with galvanised angle housings, up to load class F 900
Type 01, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
22049
Length
500 mm
Width
240 mm
Height
255 mm
Weight
37.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
205 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 150 channel type 01
Product description

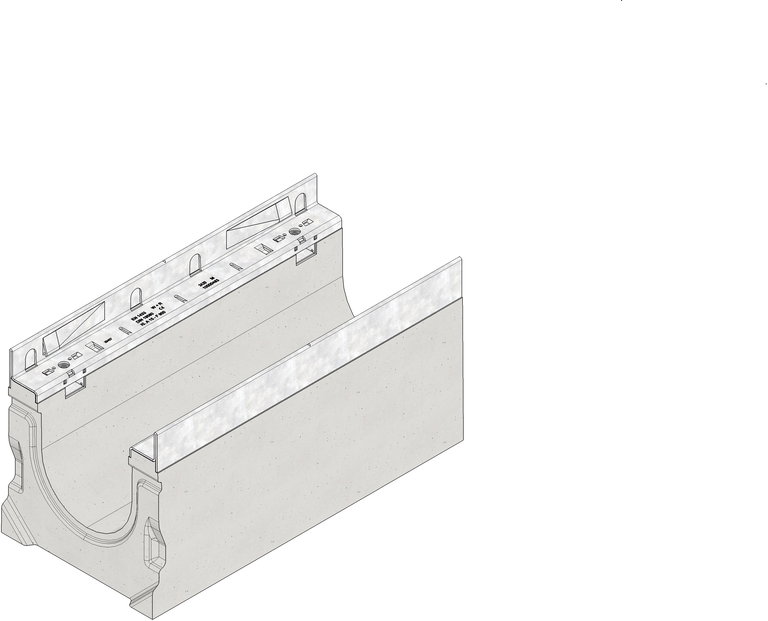

FASERFIX SUPER 150 type 01 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 500x240x255 mm, item no. 22049
Packaging unit
30
