Article No. 22035

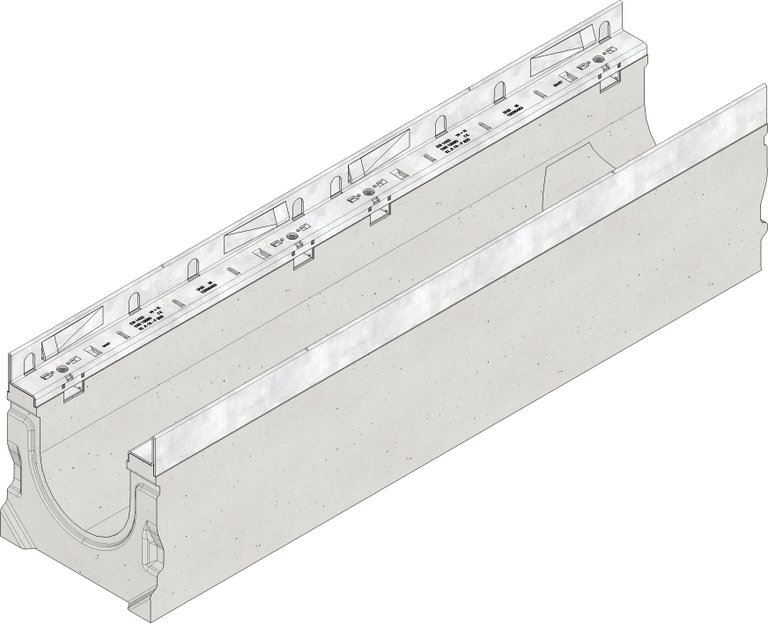

FASERFIX SUPER 150 with galvanised angle housings, up to load class F 900
Type 01L with hole, DN/OD 160, 1,0 m*
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
22035
Length
1000 mm
Width
240 mm
Height
255 mm
Weight
77.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
205 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 150 channel type 01 L with hole DN/OD 160, 1 m
Product description
FASERFIX SUPER 150 type 01 with hole - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with hole DN/OD 160, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, insert depth grating 40 mm, L/W/H 1000x210x220 mm, item no. 22035
Packaging unit
15
