Article No. 23068
FASERFIX SUPER 200, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, 0,5 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

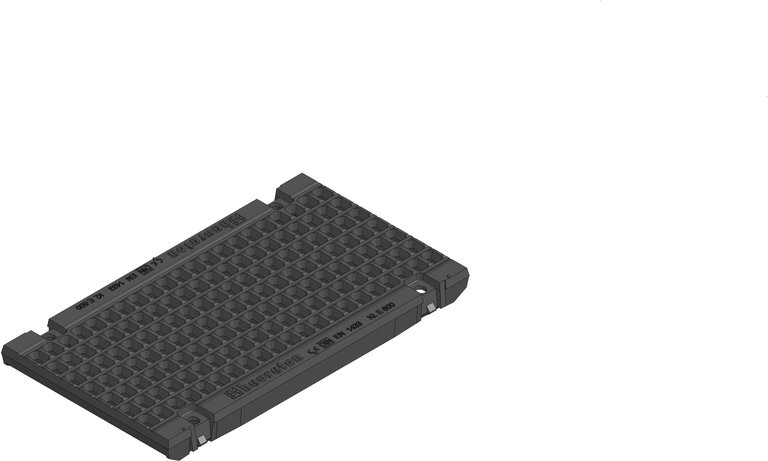

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
23068
Length
500 mm
Width
279 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
12.75 kg
Material
Ductile iron GJS 500-7
Intake cross-section
832.0 cm²/m
Nominal size
200
Inlet opening
25
Sales text
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX SUPER 200, 0.5 m
Sales text
FASERFIX SUPER 200 - GUGI-Ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh size 15x25 mm, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold-locking, installation length 500 mm, item no. 23068
Sales text
84
Declaration of Performance
