Article No. 23061
FASERFIX SUPER 200, class F 900
Ductile iron grating SW 170/20 mm, black, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

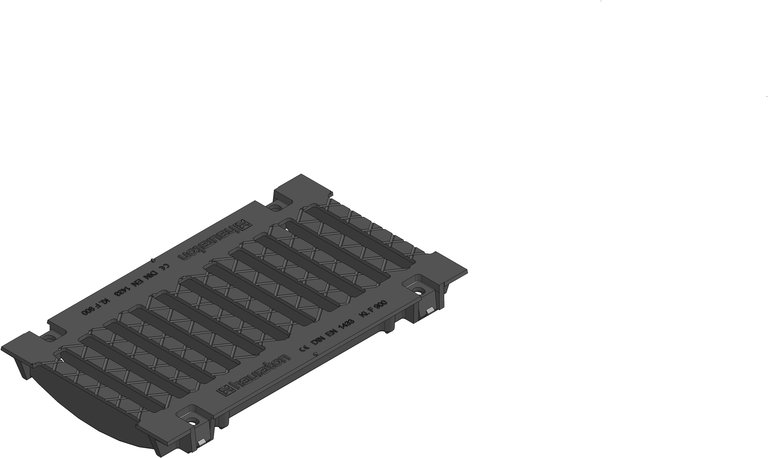

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
23061
Length
500 mm
Width
279 mm
Height
62 mm
Einlegetiefe
40 mm
Weight
13.07 kg
Material
Ductile iron GJS 500-7
Intake cross-section
833.0 cm²/m
Nominal size
200
Inlet opening
20
Sales text
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 170/20 mm, black, cl. F 900, FASERFIX SUPER 200, 0.5 m
Sales text
FASERFIX SUPER 200 - Ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 170/20 mm, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold-locking, installation length 500 mm, item no. 23061
Sales text
84
Declaration of Performance
