Article No. 4075
FASERFIX SUPER 300, class C 250
Mesh grating MS 30/15 mm, galvanised, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

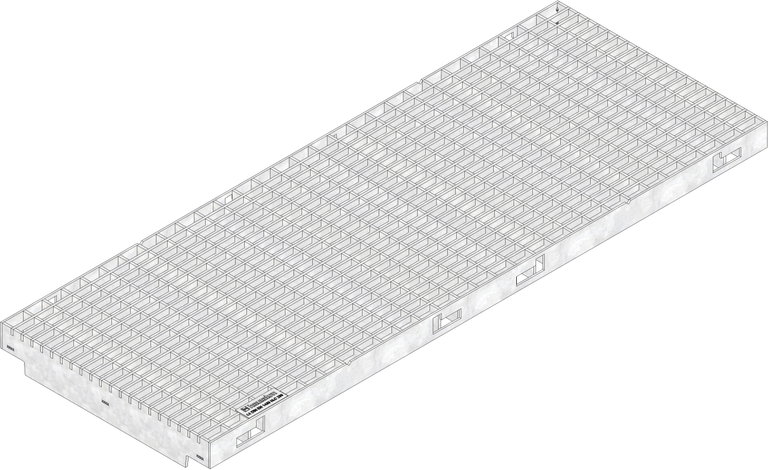

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
4075
Length
1000 mm
Width
375 mm
Height
61 mm
Einlegetiefe
40 mm
Weight
26.08 kg
Material
hot-dip galvanised steel
Intake cross-section
2127.0 cm²/m
Nominal size
300
Inlet opening
15
Fixing type
SIDE-LOCK, Bolting
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/15 mm galvanised, cl. C 250, FASERFIX SUPER 300, 1 m
Product description
FASERFIX SUPER 300 - Mesh grating MS 30x15 mm, galvanised, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 4075
Packaging unit
28
Declaration of Performance
