Article No. 24068
FASERFIX SUPER 300, class E 600
GUGI-Ductile iron mesh grating, MW 15/25 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

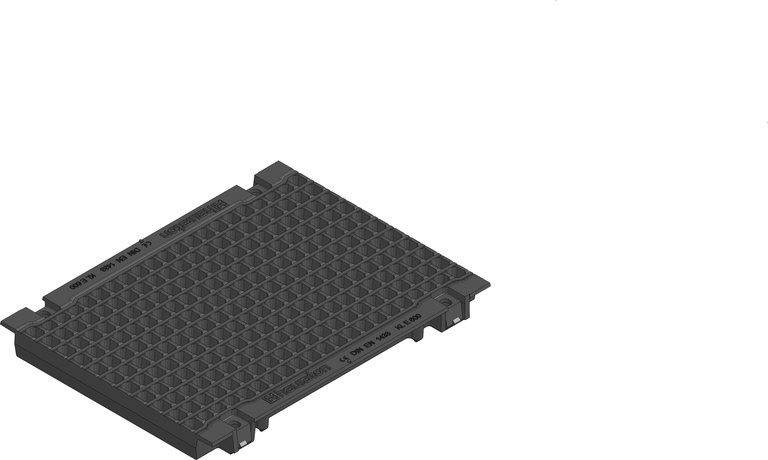

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24068
Length
500 mm
Width
379 mm
Height
47 mm
Einlegetiefe
40 mm
Weight
22.89 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1048.0 cm²/m
Nominal size
300
Inlet opening
25
Sales text
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600, FASERFIX SUPER 300, 0.5 m
Sales text
FASERFIX SUPER 300 - GUGI-Ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh size 15x25 mm, black, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24068
Sales text
50
Declaration of Performance
