Article No. 24761
FASERFIX SUPER 300, class F 900
Ductile iron grating, SW 2 x 136/20 mm, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

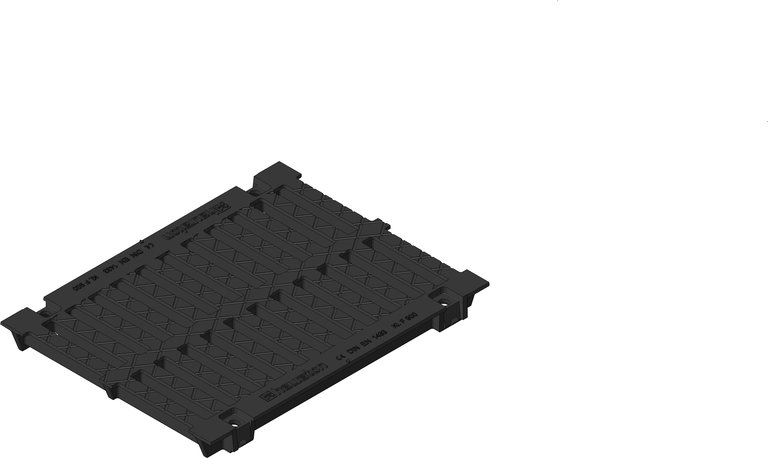

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24761
Length
500 mm
Width
379 mm
Height
64 mm
Einlegetiefe
40 mm
Weight
22.36 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
1334.0 cm²/m
Nominal size
300
Inlet opening
20
Sales text
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Sales text
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 136/20 mm, KTL-coated, cl. F 900, FASERFIX SUPER 300, 0.5 m
Sales text
FASERFIX SUPER 300 - Ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x 136/20, KTL-coated, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24761
Sales text
50
Declaration of Performance
