Article No. 24000
FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 01, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
24000
Length
1000 mm
Width
390 mm
Height
415 mm
Weight
158.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
803 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text

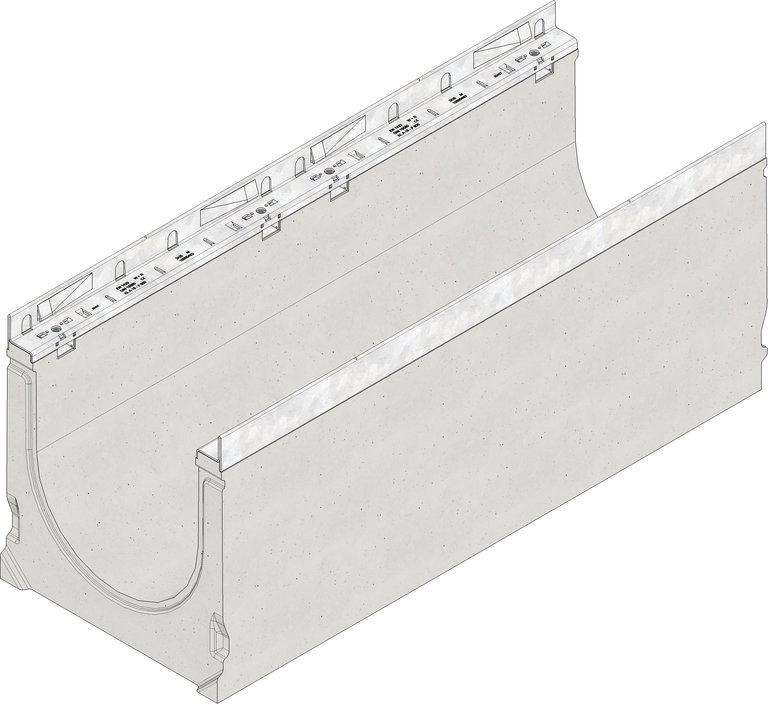

FASERFIX SUPER 300 Channel body type 01 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 300 type 01 - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 1000x390x415 mm, item no. 24000
Packaging unit
6
