Article No. 24044
FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 01 H, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

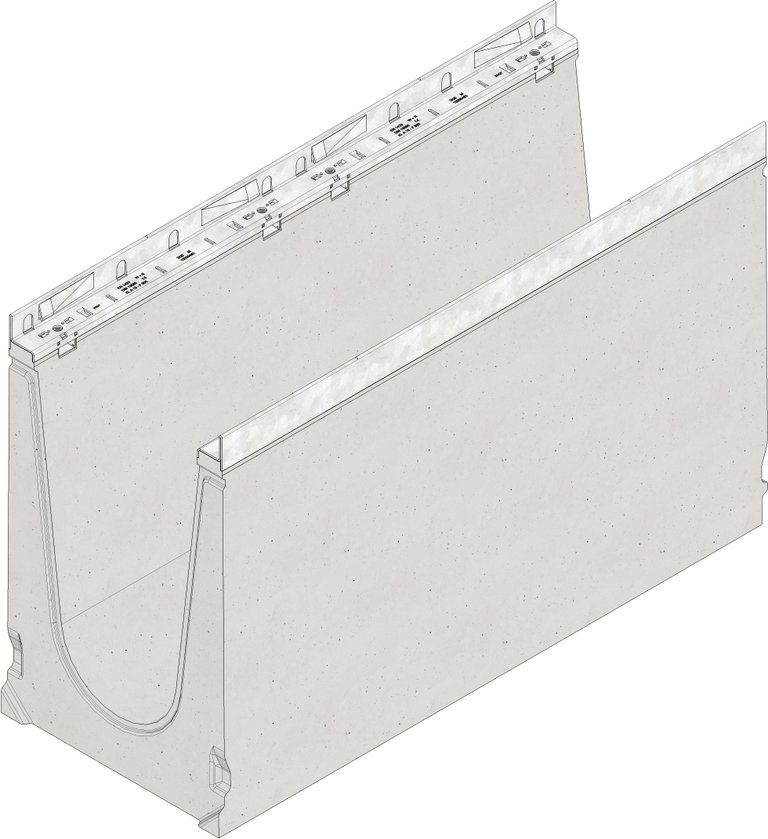

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
24044
Length
1000 mm
Width
390 mm
Height
630 mm
Weight
250.98 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
1202 cm²
Fall
-
Sales text
SIDE-LOCK, Bolting
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Sales text
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 300 Channel body type 01H, height 630 mm, with edge frames made of galvanised steel, 1 m
Sales text
FASERFIX SUPER 300 type 01 H - channel body made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, without crossing bars in the channel line, with sealing groove, grating insertion depth 40 mm, L/W/H 1000x390x630 mm, item no. 24044
Sales text
3
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class D 400
Asphalt class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement / large-size slab class D 400
Asphalt class D 400
Concrete class D 400
Asphalt class D 400 - E 600
Asphalt class D 400 - E 600
Pavement class D 400 - E 600
Concrete class D 400 - F 900
Concrete class E 600
Pavement / large-size slab class E 600 - F 900
Pavement class E 600 - F 900
Asphalt class F 900
Concrete class F 900
Pavement class A 15 - C 250
Concrete class D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Concrete class A 15 - C 250
Installation instructions
