Article No. 24210

FASERFIX SUPER 300 with galvanised angle housings, with built-in fall 0.5%, up to loading class F 900

Type 10, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

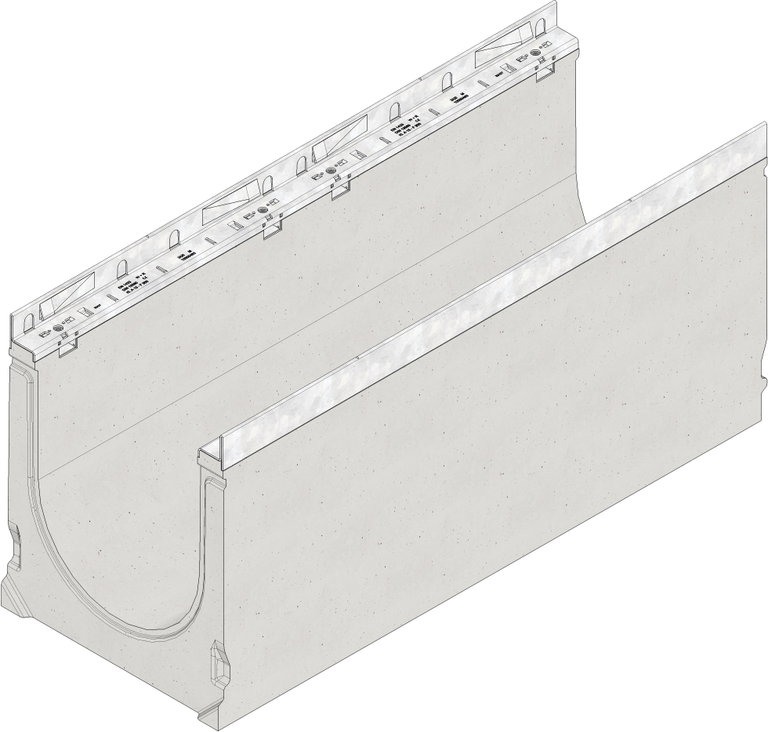

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
24210
Length
1000 mm
Width
390 mm
Height
460 - 465 mm
Weight
160.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
946 cm²
Fall
0.5 %
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 300 Channel body type 10 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 300 type 1 - 19 - channel body made of fibre reinforced concrete, loading capacity from A 15 to F 900 according to EN 1433, CE compliant, with built-in fall, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, insert depth grating 40 mm, L/W/H 1000x390x415-510 mm, item no. 24201 - 24219
Packaging unit
6

Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - C 250,

Asphalt class D 400,

Asphalt class D 400, in ramps

Asphalt class D 400, with curb

Concrete class D 400, with curb

Asphalt class D 400 - E 600,

Concrete class D 400 - E 600,

Pavement / large-size slab class D 400,

Asphalt class D 400, Type I

Concrete class D 400, Type I

Asphalt class D 400 - E 600,

Asphalt class D 400 - E 600, with ledge stone

Pavement class D 400 - E 600, in ramps

Concrete class D 400 - F 900, in ramps

Concrete class E 600,

Pavement / large-size slab class E 600 - F 900,

Pavement class E 600 - F 900, Channel height ≥ 235 mm

Asphalt class F 900,

Concrete class F 900,

Pavement class A 15 - C 250, as double strand

Concrete class D 400, as double strand

Pavement class D 400, as double strand

Asphalt class E 600, as double strand

Asphalt class F 900, as double strand

Concrete class A 15 - C 250, Flat channel

Installation instructions
