Article No. 15002
FASERFIX TRAFFIC TRAM, linear drainage
Module C
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

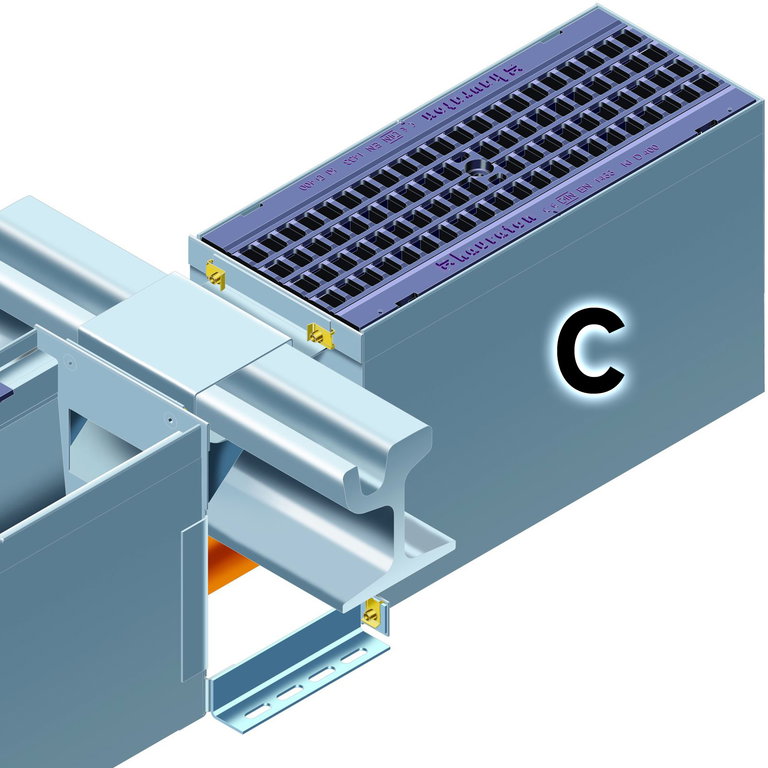

Product image
Data Sheet
Technical information and metrics
Article No.
15002
Length
-
Width
210 mm
Height
315 mm
Einlegetiefe
20 mm
Weight
176.00 kg
Material
Ductile iron GJS 500-7, Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete, reinforced Polyamide, Steel black galvanised, strip galvanized steel
Intake cross-section
622.0 cm²/m
Nominal size
150
Internal channel cross-section
312 cm²
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7 with KTL-coating
Sales text
FASERFIX TRAM Track drainage channel 150 module C
Sales text
64
Tender Texts
Installation instructions
Installation example
Concrete class C 250 - E 600
