Article No. 33282
FASERFIX TRAFFIC TRAM, point drainage
Track drainage channel complete, with GUGI-ductile iron mesh grating MW 15/25 mm, KTL coated, with vertical outlet DN/OD 200, 0,317 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

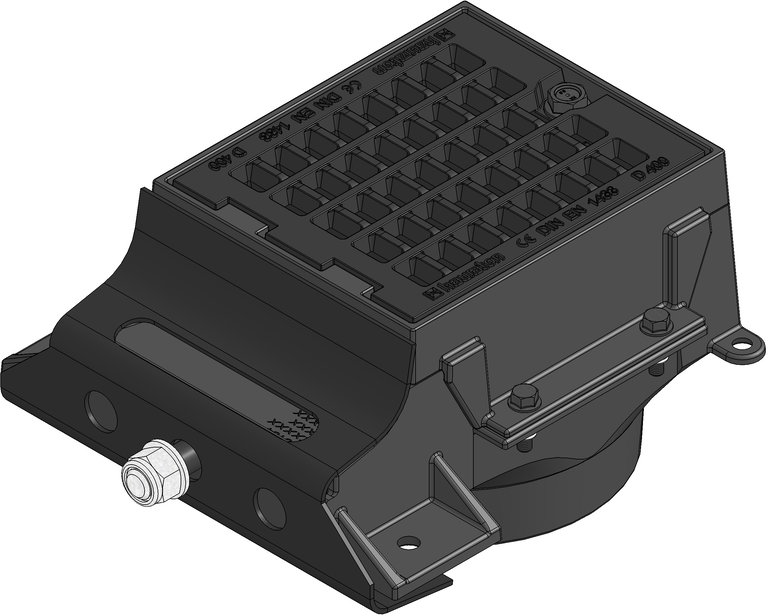

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33282
Length
317 mm
Width
300 mm
Height
155 mm
Weight
15.60 kg
Material
Ductile iron GJS 500-7, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Stainless steel 1.4301, Steel 8.8 zinc-laminated black, Steel black galvanised
Inlet opening
25
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
TRAM BOX Track drainage channel, with GUGI-ductile iron mesh grating MW 15/25 mm, KTL coated, cl. D 400, with vertical outlet DN/OD 200, 0,317 m
Product description
TRAM BOX - Track drainage channel, with GUGI-ductile iron mesh grating MW 15/25 mm, KTL coated, cl. D 400, with vertical outlet DN/OD 200, 0,317 m, item no. 33282
Packaging unit
16
Tender Texts
Installation instructions
Installation example
Concrete class C 250 - E 600
