Article No. 36063
Inspection elements
Inspection element, type 280, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

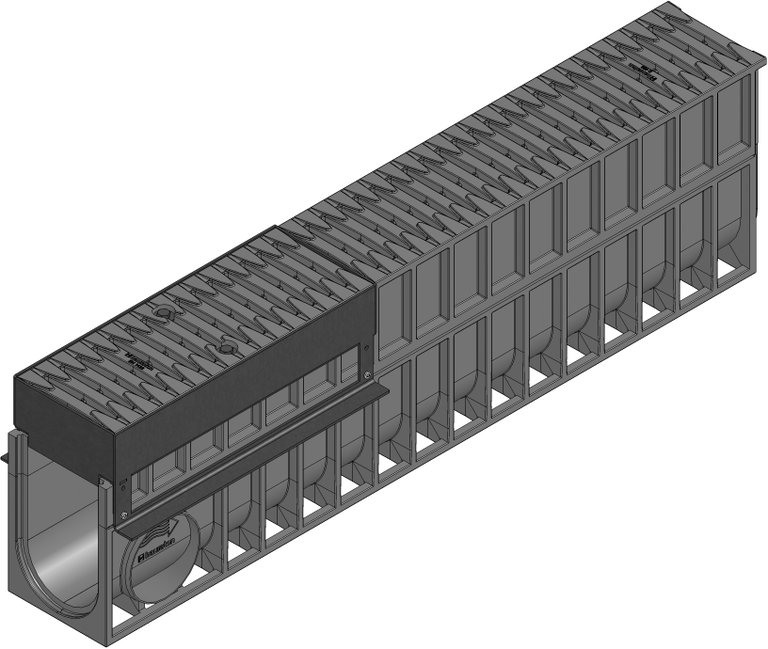

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
36063
Length
1000 mm
Width
158 mm
Height
280 mm
Weight
11.79 kg
Material
KTL coated steel, reinforced Polypropylene
Height of angle housing
83 mm
Intake cross-section
351.0 cm²/m
Nominal size
100
Internal channel cross-section
185 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
DIN 19580
Sales text
RECYFIX MONOTEC 100 type 280 with permanently integrated grating in FIBRETEC design SW 110/9 mm and with integrated access box, 1 m
Product description
RECYFIX MONOTEC 100 type 280 with integrated access element -Monolithic channel consisting of channel body and permanently integrated grating in FIBRETEC design slot width 110/9 mm, made of recycled polypropylene (PP), black, with integrated access element, with lateral connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x158x280 mm, item no. 36063
Packaging unit
28
Tender Texts
Installation example
Concrete class A 15 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Installation instructions
