Article No. 36262
Inspection elements
Inspection element, type 450, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

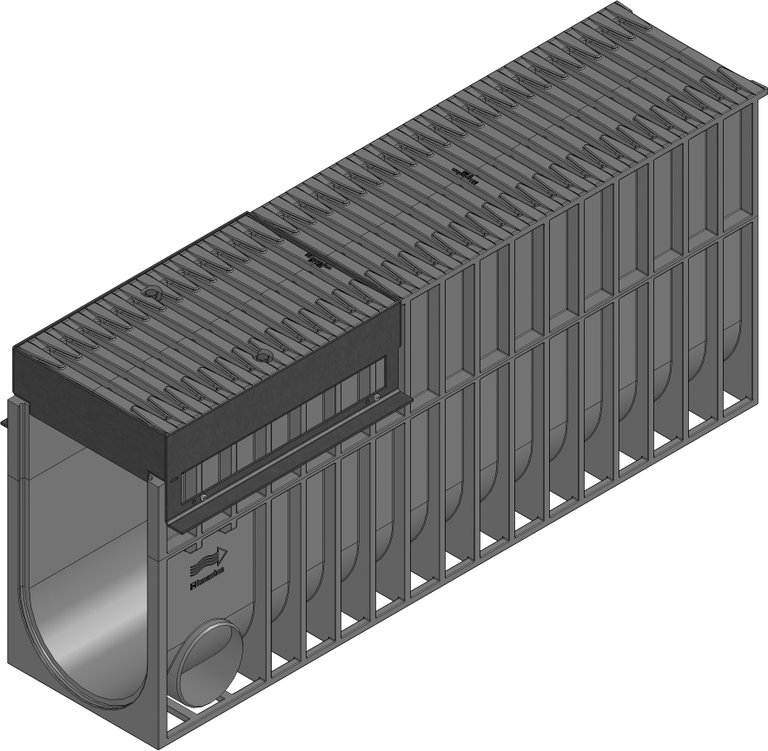

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
36262
Length
1000 mm
Width
258 mm
Height
450 mm
Weight
19.69 kg
Material
KTL coated steel, reinforced Polypropylene
Height of angle housing
34 mm
Intake cross-section
307.0 cm²/m
Nominal size
200
Internal channel cross-section
648 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
DIN 19580
Sales text
RECYFIX MONOTEC 200 type 450 with permanently integrated grating in FIBRETEC design SW 200/10 mm and with integrated access box, 1 m
Product description
RECYFIX MONOTEC 200 type 450 with integrated access element -Monolithic channel consisting of channel body and permanently integrated grating in FIBRETEC design slot width 200/10 mm, made of fibre-reinforced recycled polypropylene (PP), black, with integrated access element, with lateral connection possibility DN/OD 110, load class A 15 - D 400 according to EN 1433, LxWxH 1000x250x450 mm, item no. 36262
Packaging unit
12
Tender Texts
Installation example
Concrete class A 15 - D 400
Concrete class C 250 - D 400
Pavement class D 400
