Article No. 13010
RECYFIX HICAP F 2000 up to load class D 400
Type 2200, with ductile iron slot grating SW 6 mm, KTL-coated, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

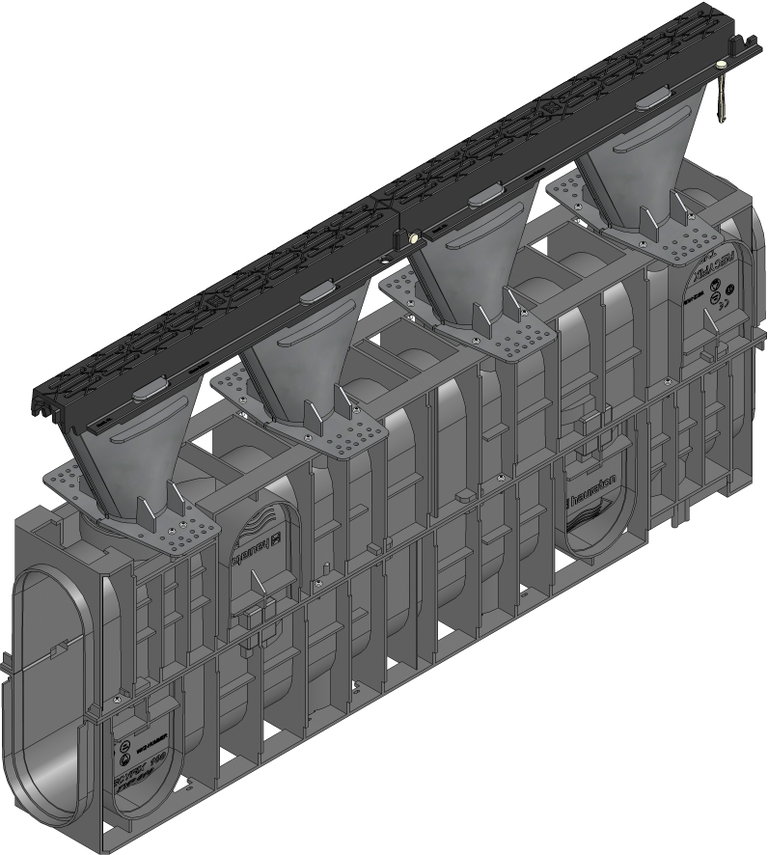

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
13010
Length
1000 mm
Width
147 mm
Height
565 mm
Weight
13.20 kg
Material
ABS, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
228 mm
Intake cross-section
129.0 cm²/m
Nominal size
2000
Internal channel cross-section
284 cm²
Fall
-
Height funnel
200 mm
Inlet opening
51
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 2200 with ductile iron slotted grating SW 6 mm, KTL-coated, cl. D 400, 1 m
Product description
RECYFIX HICAP F 2200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 6 mm, KTL coated, loading capacity from A 15 up to D 400, length 1000 mm, item no. 13010
Packaging unit
21
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Pavement class A 15 - C 250,
Pavement class A 15 - C 250,
Pavement class A 15 - C 250,
Asphalt class D 400, with stainless steel angle housing in wave or slot design
Asphalt class D 400, in connection with stainless steel frame in Wave or Slot design
Concrete class D 400, in connection with stainless steel frame in Wave or Slot design
Concrete class D 400, in connection with stainless steel frame in Wave or Slot design
Pavement / large-size slab class D 400,
Pavement / large-size slab class D 400,
Pavement / large-size slab class D 400, in connection with stainless steel frame in Wave or Slot design
Pavement / large-size slab class D 400, in connection with stainless steel frame in Wave or Slot design
