Article No. 13630

RECYFIX HICAP F 8000 up to load class F 900

Type 8200, ductile iron slot grating SW 28 mm, KTL-coated, 1,0 m

Delivery time on request

Questions?

Our experienced planning team will be happy to help you.

Get in touch

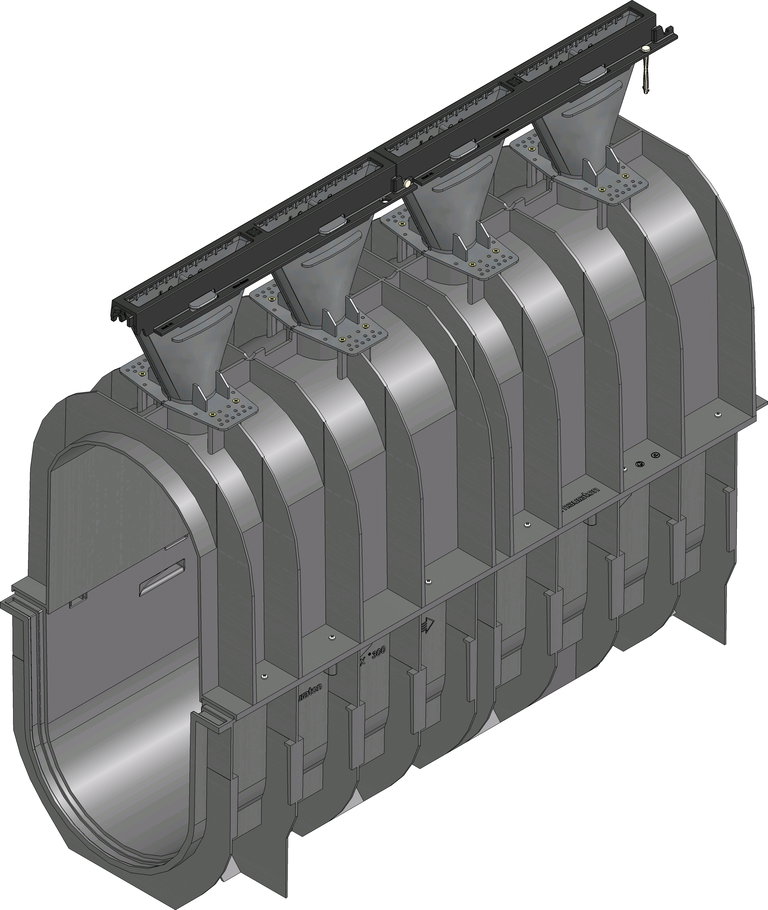

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
13630
Length
1000 mm
Width
432 mm
Height
950 mm
Weight
21.64 kg
Material
ABS, Aluminium, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
254 mm
Intake cross-section
248.0 cm²/m
Nominal size
8000
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
200 mm
Inlet opening
220
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 8200 with ductile iron slotted grating SW 28 mm, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 8200 -consists of closed channel body with inlet adapter, with integrated ductile iron slot 28 mm, KTL coated, loading capacity from A 15 up to F 900, length 1000 mm, item no. 13630
Packaging unit
6

Declaration of Performance

Tender Texts

Installation example

Asphalt class F 900,

Asphalt class F 900, Inspection element

Asphalt class F 900, Inspection element

Concrete class F 900,

Pavement / large-size slab class F 900,

Concrete class F 900, Inspection element

Concrete class F 900, Inspection element
