Article No. 48848
RECYFIX NC 150, class E 600
Type 01 with ductile iron grating, black, SW 154/18 mm, 4-fold bolted, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

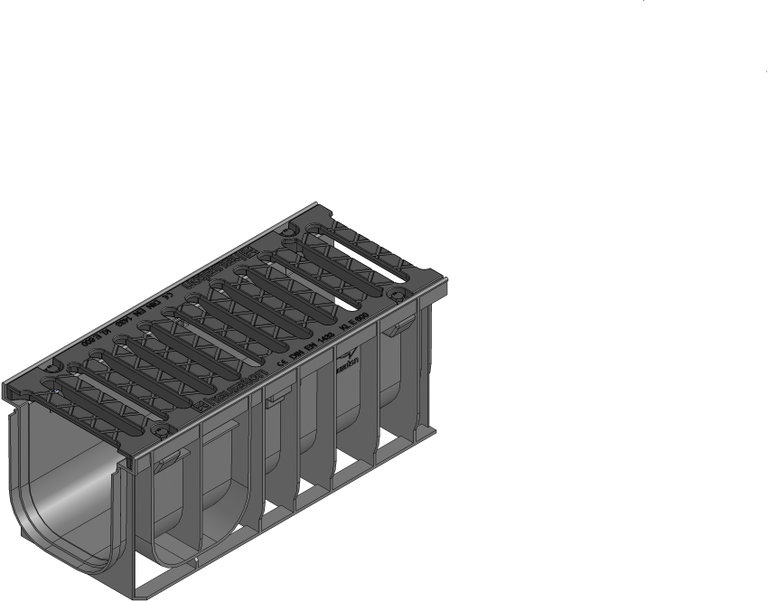

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48848
Length
500 mm
Width
212 mm
Height
210 mm
Weight
7.88 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
702.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 150 type 01 with ductile iron grating, SW 154/18 mm, black, cl. E 600
Product description
RECYFIX NC 150 Type 01 - channel made of modified PP with integrated angle housing, according EN 1433, with ductile iron grating made of spheroidal ductile iron GJS 500-7 , SW 154/18 mm, black, with horizontal thrust resistance and fourfold locking, loading capacity from A 15 - E 600, L/W/H 500 x 212 x 210 mm item no. 48848
Packaging unit
50
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement class D 400 - E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Pavement class D 400
Asphalt class E 600
Concrete class C 250 - D 400
Asphalt class C 250 - D 400
Concrete class E 600
