Article No. 41410
RECYFIX PLUS 100, class B 125
Type 01 with mesh grating MW 30/10 mm, stainless steel, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

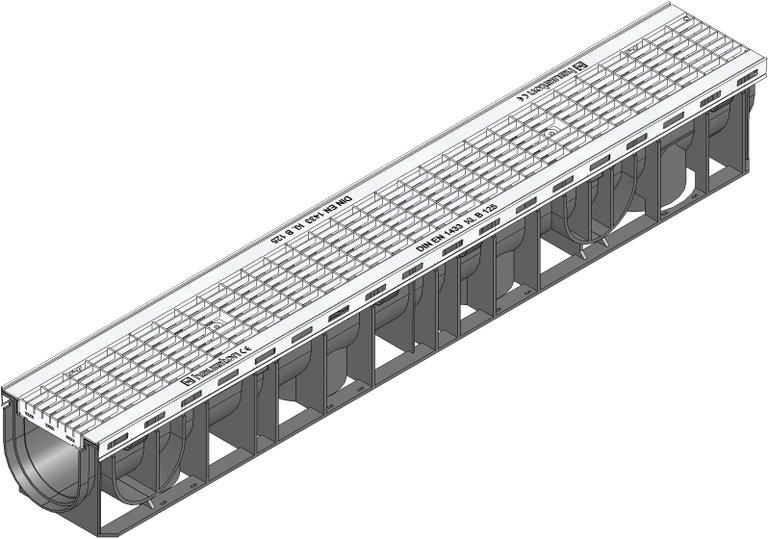

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41410
Length
1000 mm
Width
147 mm
Height
135 mm
Weight
6.15 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
Stainless steel 1.4301
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 channel type 01, with mesh grating MW 30/10, stainless steel, cl. B 125, with locking device, 1m
Product description
RECYFIX PLUS 100 type 01 - channel made of modified PP, with integrated metal profile made of stainless steel CNS 1.4301 (AISI 304) for the grating support, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh grating, stainless steel CNS 1.4301 (AISI 304), mesh width 30/10, locked, with locking device, loading capacity from A 15 - B 125, L/W/H 1000x147x135 mm, item no. 41410
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
