Article No. 40359
RECYFIX PLUS 100, class C 250
Type 60 with GUGI-Ductile iron mesh grating MW 15/25 mm, black, locked, 1,0 m*
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

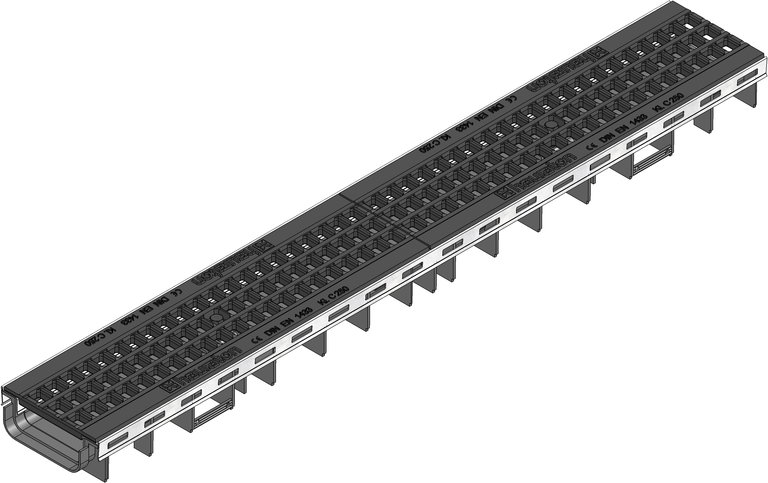

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40359
Length
1000 mm
Width
147 mm
Height
60 mm
Weight
7.92 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
453.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 channel Type 60 with GUGI-ductile iron mesh grating, black, MW 15/25, cl. C 250 and bolts
Product description
RECYFIX PLUS 100 type 60 - Channel made of modified PP, with integrated metal profile for the grating support, according to EN 1433, with vertical connection possibilty DN/OD 75, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25, with horizontal thrust resistance, black, locked, loading capacity from A 15 - C 250, L/W/H 1000x147x60 mm, item no. 40359
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
