Article No. 40371
RECYFIX PLUS 100, class D 400
Type 01 with ductile iron grating heelsafe, SW 80/6 mm, black, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

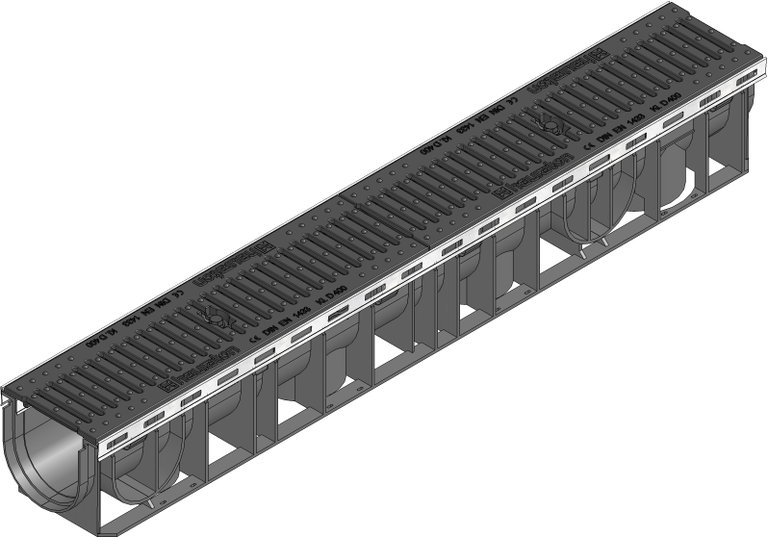

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40371
Length
1000 mm
Width
147 mm
Height
135 mm
Einlegetiefe
6 mm
Weight
9.36 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Sales text
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 01 with edge frames made of galvanised steel and ductile iron grating SW 81/6 mm, black, cl. D 400, locked, 1 m
Sales text
RECYFIX PLUS 100 type 01 - channel made of modified PP, with integrated metal profile for the grating support, according to EN 1433,with vertical connection possibility DN/OD 110, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 80/6 mm, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - D 400, L/W/H 1000x147x135 mm, item no. 40371
Sales text
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125

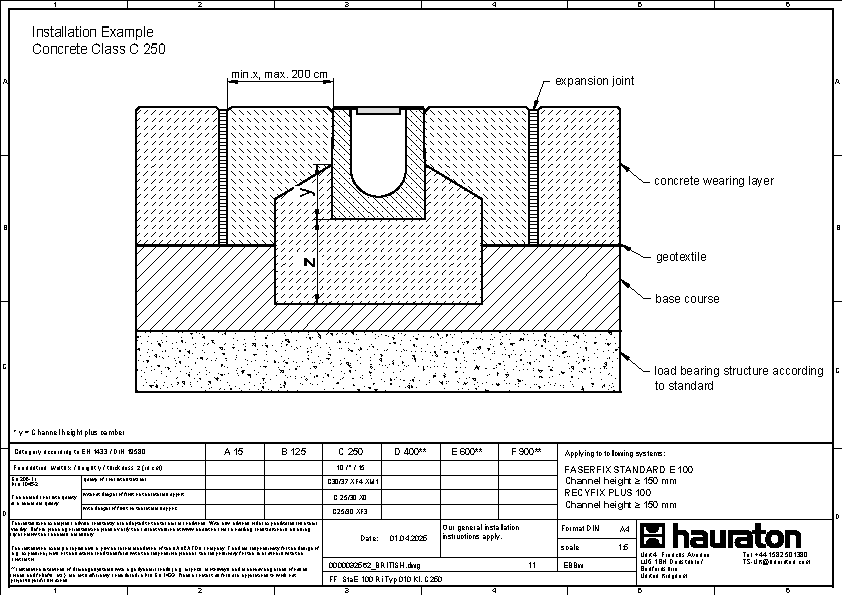

Pavement class C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
