Article No. 40340
RECYFIX PLUS 100, trafficable
Type 010 with mesh grating MW 30/10 mm, galvanised, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

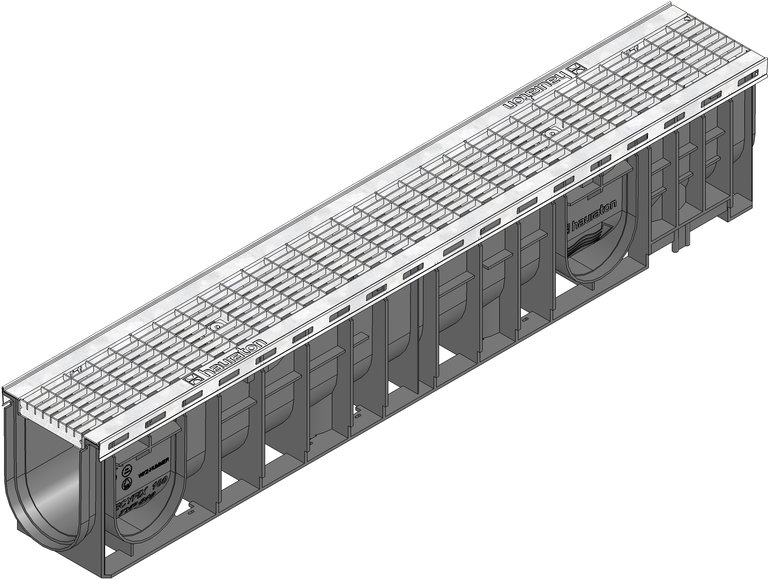

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40340
Length
1000 mm
Width
147 mm
Height
186 mm
Weight
6.38 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
760.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 100 channel Type 010 with mesh grating MW 30/10, galvanised, trafficable, with locking device
Product description
RECYFIX PLUS 100 type 010 - channel made of modified PP, with integrated metal profile for the grating grating support, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh grating, mesh width 30/10 and locking device, trafficable, galvanised, locked, L/W/H 1000x147x186 mm, item no. 40340
Packaging unit
42
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
