Article No. 40788

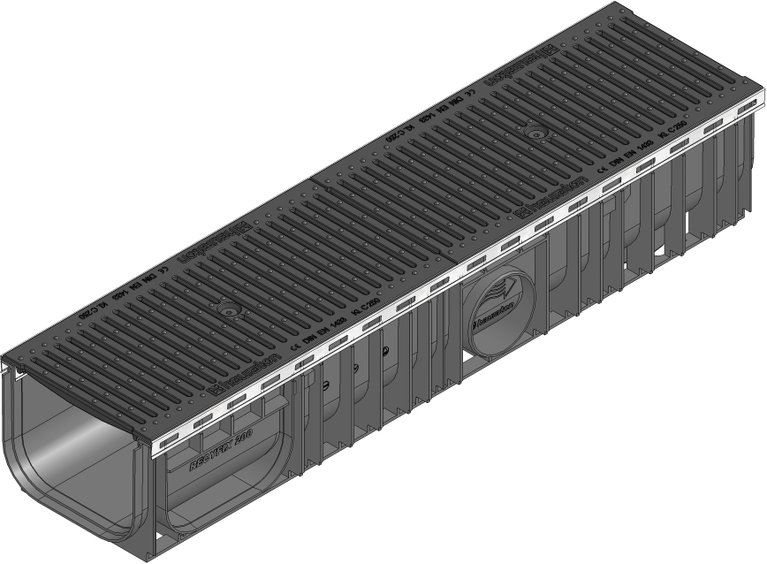

RECYFIX PLUS 200, class C 250
Type 010 with ductile iron grating, SW 6 mm, black, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40788
Length
1000 mm
Width
247 mm
Height
186 mm
Weight
19.00 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
557.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Type 010 with ductile iron grating, SW 6 mm, cl. C 250, locked
Product description
RECYFIX PLUS 200 type 010 - channel made of modified PP, with integrated metal profile for the grating support, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x247x186 mm, item no. 40788
Packaging unit
20
