Article No. 40787

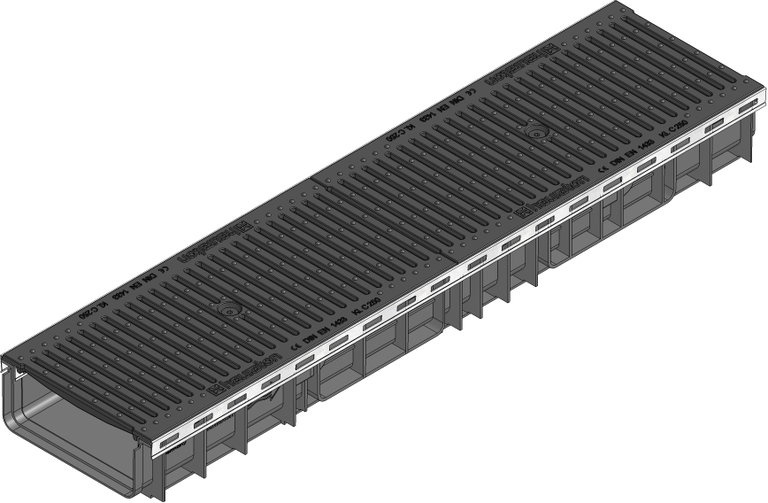

RECYFIX PLUS 200, class C 250
Type 100 with ductile iron grating, SW 6 mm, black, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40787
Length
1000 mm
Width
247 mm
Height
100 mm
Weight
17.56 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
557.0 cm²/m
Nominal size
200
Internal channel cross-section
147 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Type 100 with ductile iron grating, SW 6 mm, cl. C 250, locked
Product description
RECYFIX PLUS 200 type 100 - channel made of modified PP, with integrated metal profile for the grating support, with vertical connection possibility DN/OD 75/110, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, locked, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x247x100 mm, item no. 40787
Packaging unit
36
