Article No. 40791
RECYFIX PLUS 200, class D 400
Type 020 with ductile iron grating, SW 80/6 mm, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

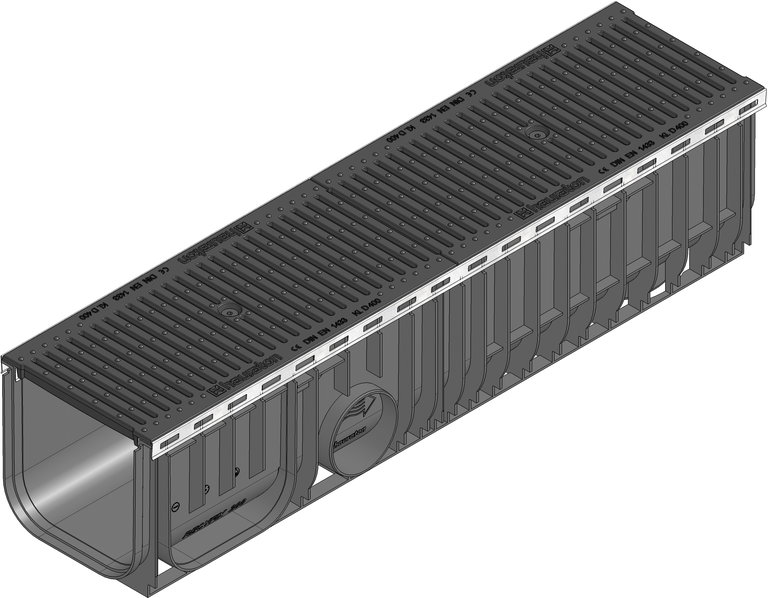

Product image

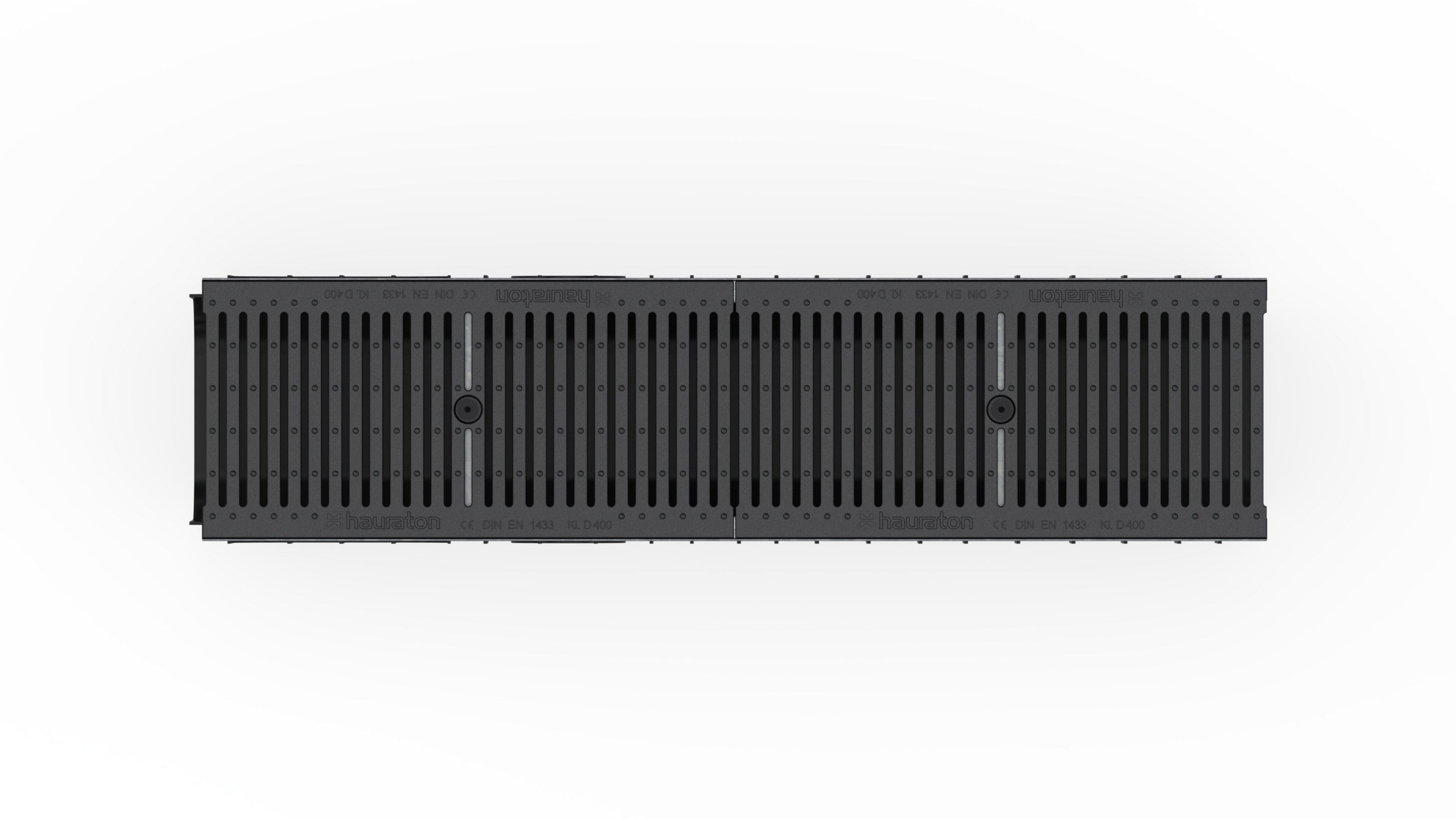

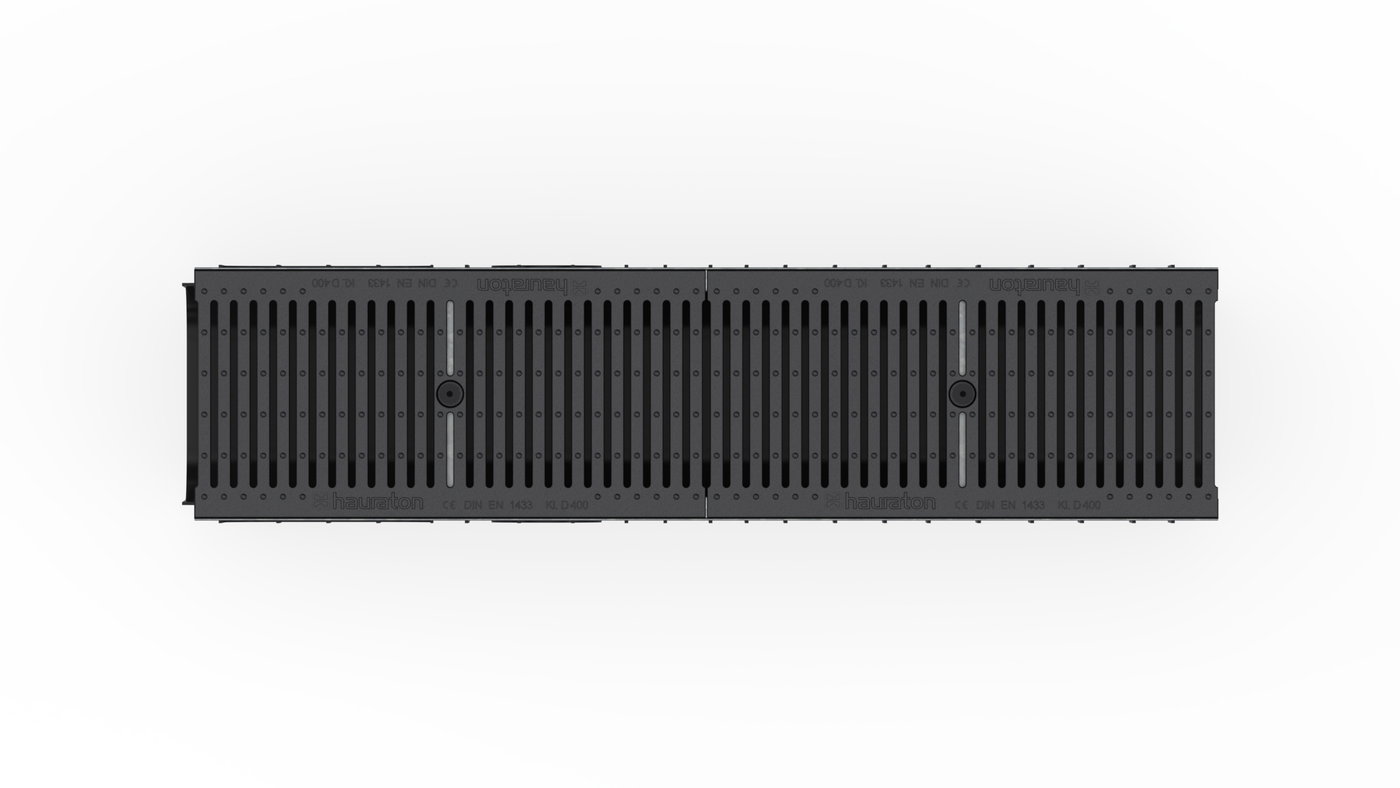

Top view

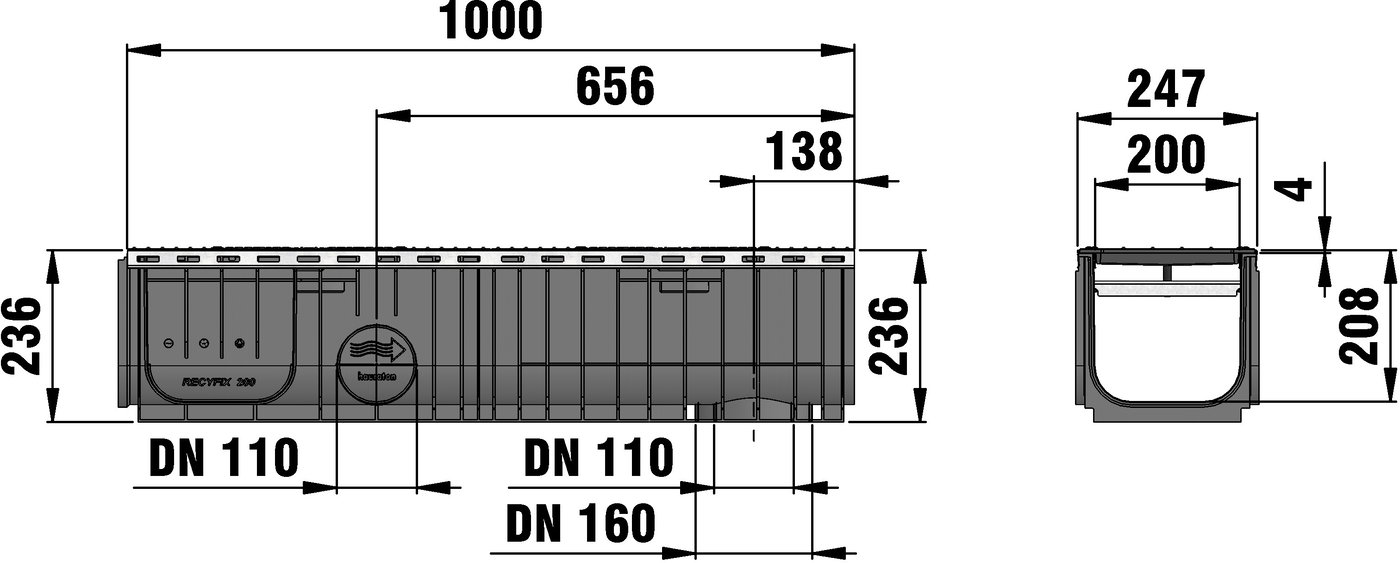

Technical drawing

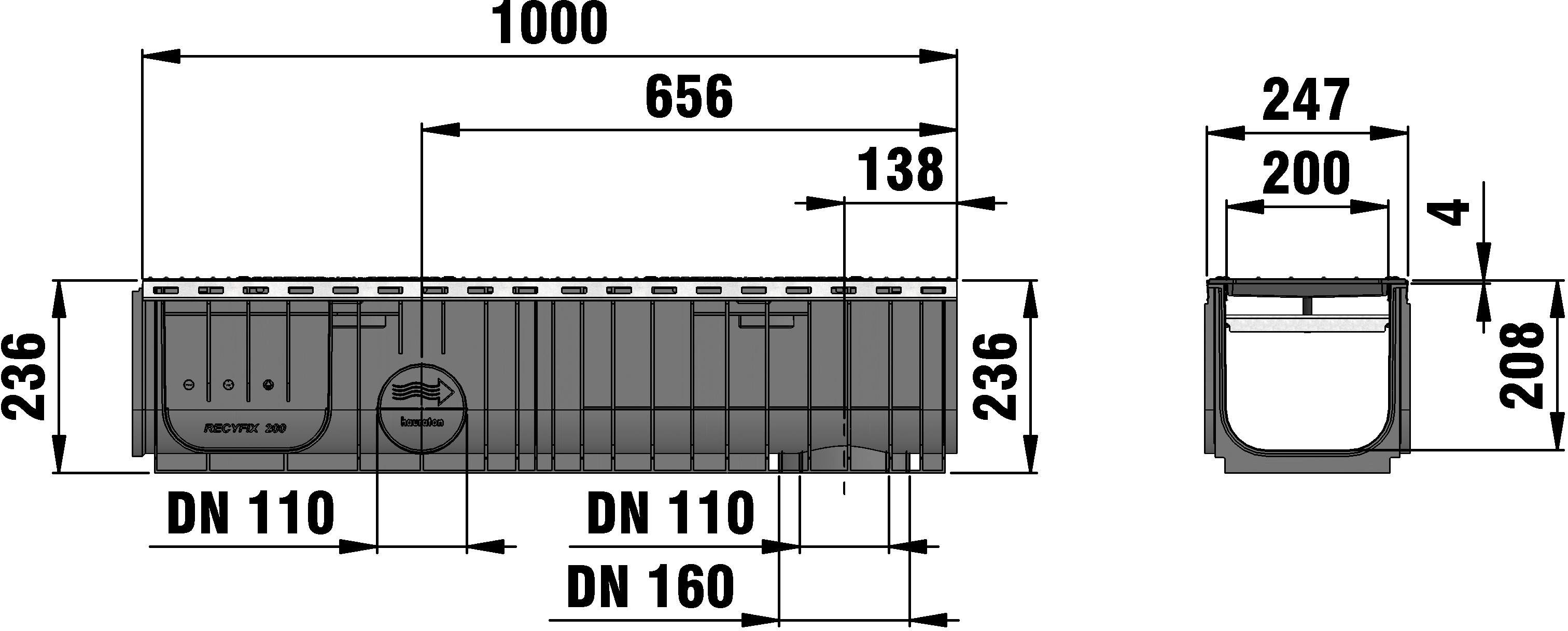

Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40791
Length
1000 mm
Width
247 mm
Height
236 mm
Einlegetiefe
6 mm
Weight
18.54 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
557.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Sales text
M
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 020 with edge frames made of galvanised steel and ductile iron grating SW 180/6 mm, black, model UK, cl. D 400, locked, 1 m
Sales text
RECYFIX PLUS 200 type 020 - channel made of modified PP, with integrated metal profile for the grating support, with lateral (DN/OD 110) and vertical (DN/OD 110/150) connection possibility, with ductile iron grating made of spheroidal ductile iron GJS 500-7, type UK, slot width 180/6 mm, black, overlying, with horizontal thrust resistance and locking device, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x247x236 mm, item no. 40791
Sales text
16
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Pavement class C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
