Article No. 32184
RECYFIX POINT 30/30, Point drainage, class B 125
Installation height 300 mm, with ductile iron grating, star design SW 12 mm, black
Questions?
Our experienced planning team will be happy to help you.
Get in touch

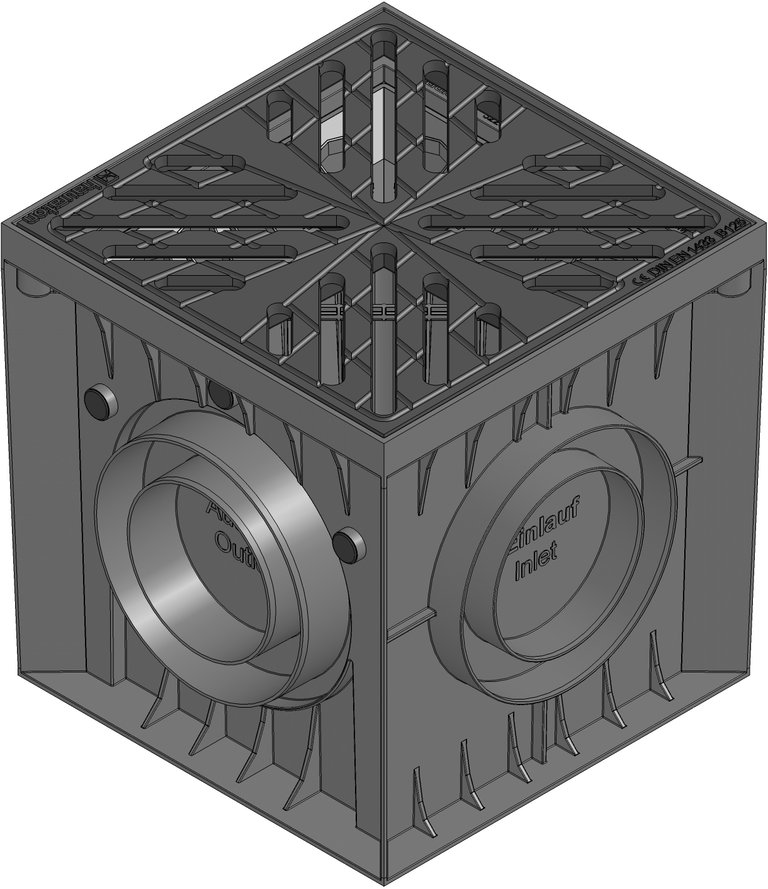

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32184
Length
291 mm
Width
291 mm
Height
300 mm
Weight
6.97 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene
Nominal size
-
Inlet opening
0
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30 Gully, installation height 300 mm, with ductile iron grating star design SW 12 mm, black, cl. B 125, with silt bucket made of composite and foul air trap
Product description
RECYFIX POINT 30/30 Gully, installation height 300 mm, made of recycled polypropylene, with ductile iron grating made of spheroidal ductile iron EN-GJS-500-7, star design SW 12 mm, black, with silt bucket made of composite and foul air trap, with lateral connection possibility DN/OD 110/160, load class A 15 - B 125 according to EN 1433, CE compliant, LxWxH 291x291x300 mm, item no. 32184
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class A 15,
water-bound road surfaces class A 15,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class A 15 - C 250,
water-bound road surfaces class A 15 - C 250,
Pavement class C 250,
Pavement class A 15 - C 250,
Asphalt class A 15 - C 250,
Concrete class B 125 - C 250,
Pavement class C 250,
Installation instructions
