Article No. 32614
RECYFIX POINT 30/30, Point drainage, class C 250, with foul air trap, mud bucket and KG-pipe connection DN/OD 110, DN/OD 160
Construction height 450 mm with longitudinal ductile iron grating, bar distance 8 mm, screwed, black, KTL-coated
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

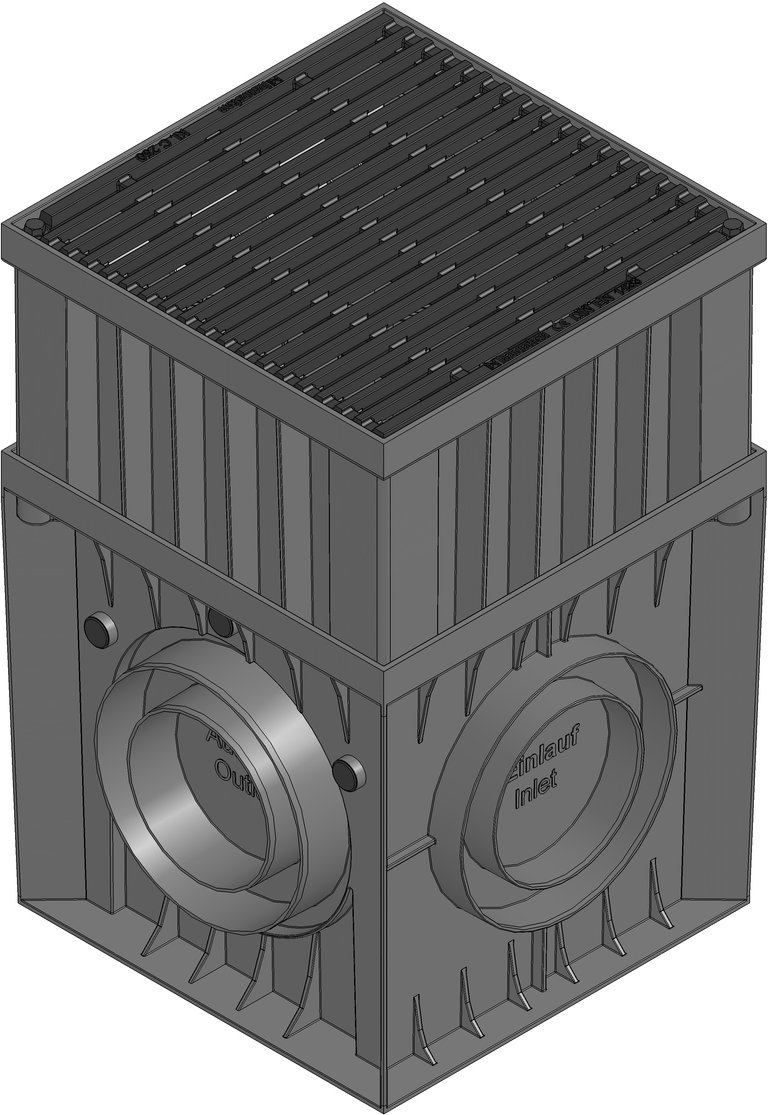

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32614
Length
291 mm
Width
291 mm
Height
450 mm
Weight
7.86 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Nominal size
-
Inlet opening
0
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433
Sales text
RECYFIX POINT 30/30, installation height 450 mm, with longitudinal ductile iron grating bar distance 8 mm, KTL-coatet, cl. C 250, screwed, with sludge trap bucket and foul air trap
Product description
RECYFIX POINT 30/30 - drainage point, installation height 450 mm, made of modified PP, with longitudinal ductile iron grating bar distance 8 mm, KTL-coated, loading capacity from A 15 - C 250, locked, with silt bucket and foul air trap, with lateral connection possibility DN/OD 110/160, L/W/H 291x291x450 mm, item no. 32614
Packaging unit
24
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class A 15
water-bound road surfaces class A 15
Pavement class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Pavement class C 250
Pavement class A 15 - C 250
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class C 250
Installation instructions
