Article No. 47035

RECYFIX PRO 100, class B 125

Type 01 with GUGI-Grating made of PA-GF, MW 15/25 mm, black, locked, 1,0 m

Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities

Questions?

Our experienced planning team will be happy to help you.

Get in touch

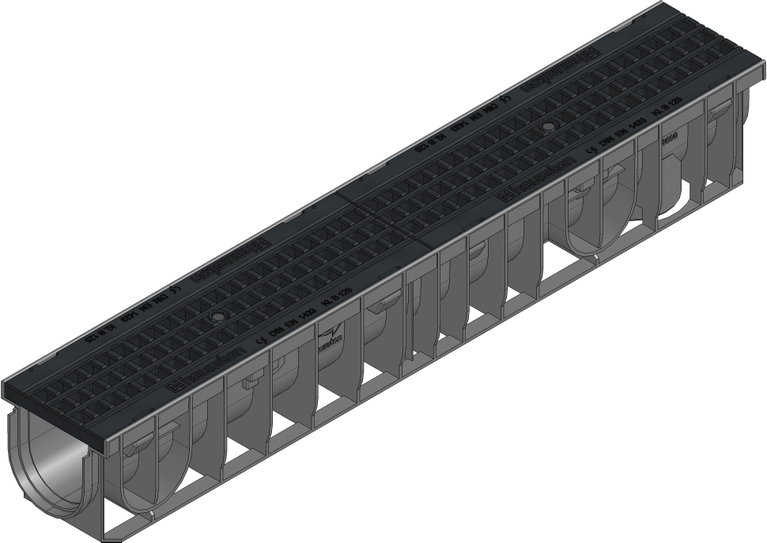

Product image

Top view

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
47035
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
4.26 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 Channel type 01 with integrated edge frames, with GUGI-mesh grating made of composite MS 15/25 mm, black, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with GUGI-mesh grating, mesh width 15/25, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x160x150 mm, item no. 47035
Packaging unit
49

Declaration of Performance

Tender Texts

Installation example

water-bound road surfaces class A 15 - B 125,

Pavement class A 15 - B 125,

Asphalt class A 15 - B 125,

Pavement class A 15 - B 125,

Concrete class A 15 - C 250,

Asphalt class C 250,

Pavement class C 250,

Asphalt class A 15 - B 125, as double strand

Pavement class A 15 - C 250, as double strand

Asphalt class C 250, as double strand

Concrete class C 250, as double strand

Installation instructions
