Article No. 47055
RECYFIX PRO 100, class C 250
Type 01 with FIBRETEC design slotted grating, SW 110/9 mm, in the colour black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

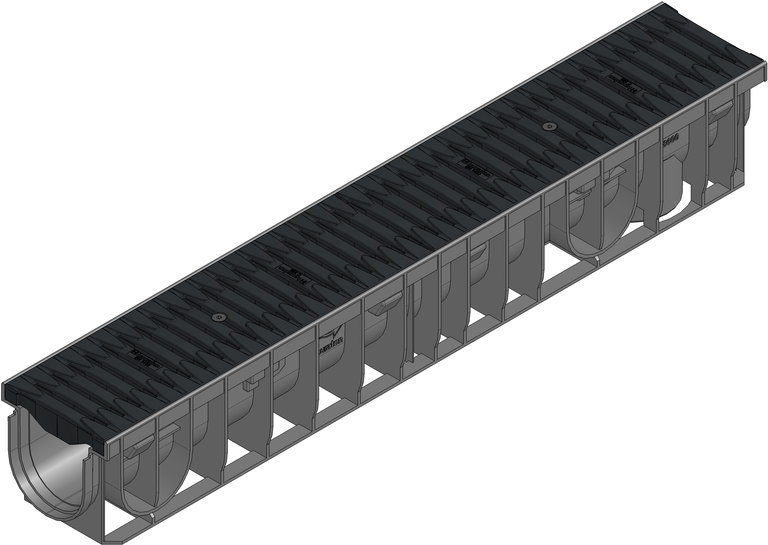

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47055
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
4.60 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 Channel type 01 with integrated edge frames, with FIBRETEC Design slotted grating SW 110/9 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with FIBRETEC design slotted grating SW 110/9 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - C 250 according to DIN 19580/EN 1433, LxWxH 1000x160x150 mm, item no. 47055
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
