Article No. 48625
RECYFIX PRO 100, class C 250
Type 020 with FIBRETEC design slotted grating SW 110/9 mm, in the colour Black, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

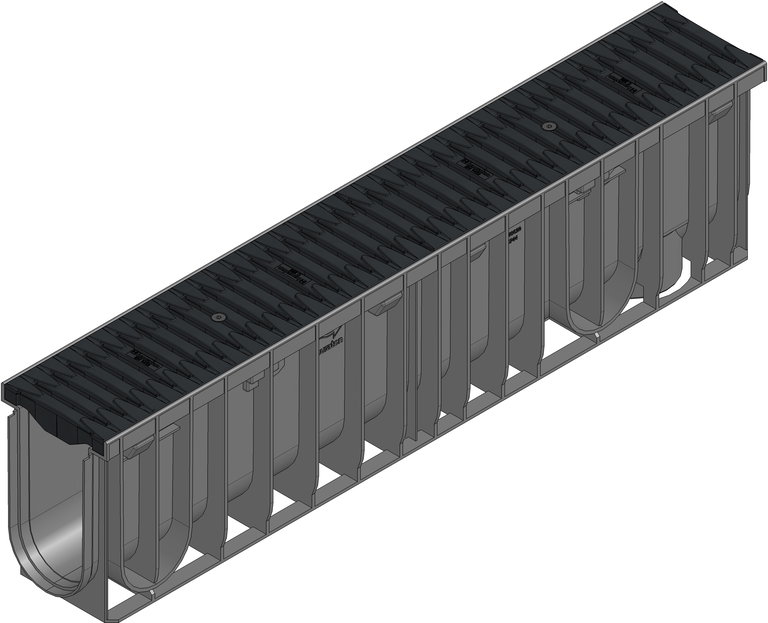

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48625
Length
1000 mm
Width
160 mm
Height
250 mm
Weight
5.76 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 100 Type 020 with FIBRETEC design slotted grating, SW 9 mm, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 type 020 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with FIBRETEC design slotted grating, slot width 9 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x160x250 mm, item no. 48625
Packaging unit
28
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Cemented floor class A 15 - C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
