Article No. 48627
RECYFIX PRO 100, class C 250
Type 020 with reinforced slotted grating, SW 80/10 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

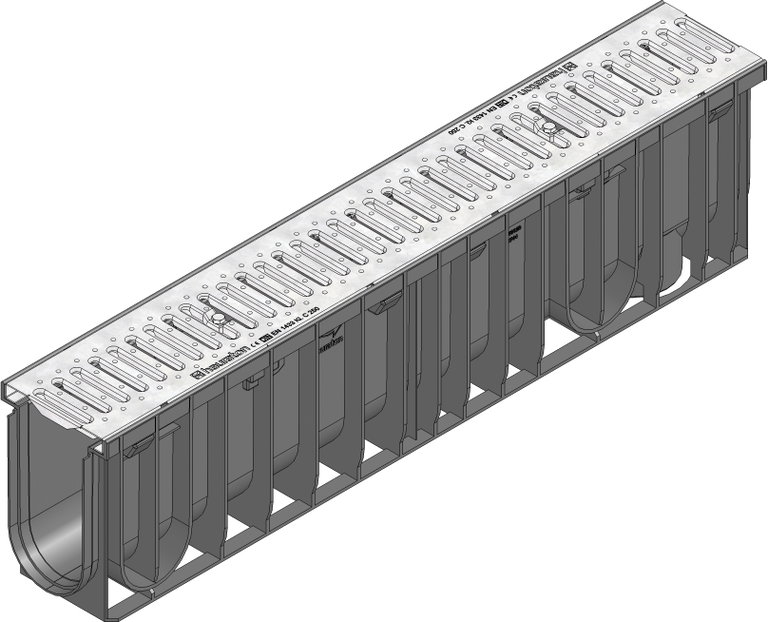

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
48627
Length
1000 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
9.00 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301, strip galvanized steel
Intake cross-section
281.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 020 with integrated edge frames, with reinforced slotted grating SW 80/10 mm, galvanised, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 100 type 020 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with reinforced slotted grating, galvanised, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x160x250 mm, item no. 48627
Packaging unit
28
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
